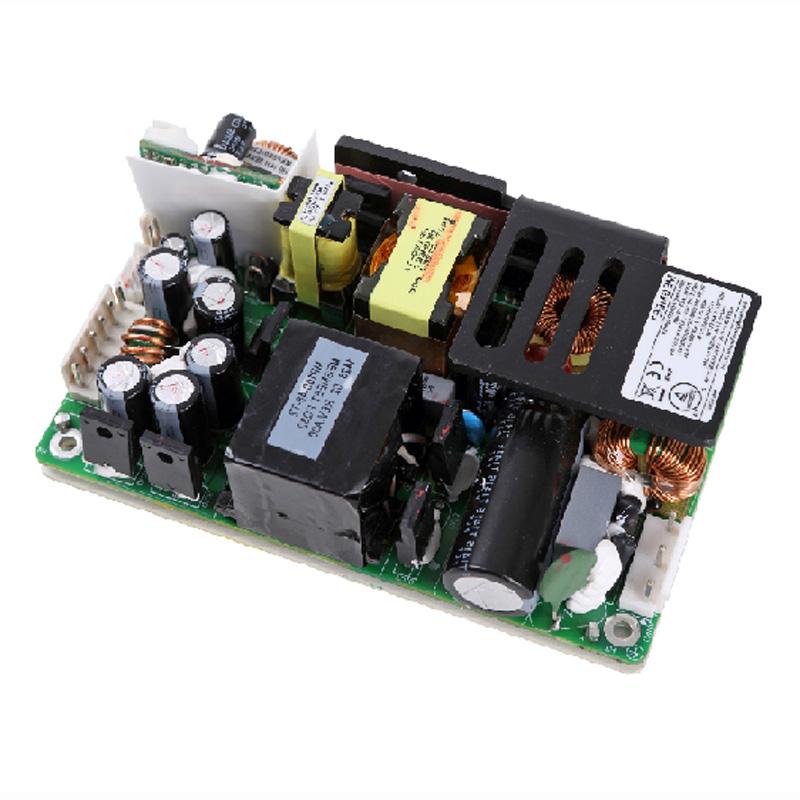

MKP/MCP150W Series
Product Information:
Model: MKP/MCP150W
Medical 60601-1 Safety Approvals
Small 4.1 x 2 x 1” Package
Class I, Construction Compatible
Medical (BF) Approvals For Class I
High Efficiency up to 94%
High Power Density 28W/in3
Universal AC Input with Active PFC
EN55011 / FCC Part 15J Class B Emissions
3 Year Warranty
Electrical Specification:
Input characteristic:
Universal AC input range: 80-264 VAC
Input frequency: 47- 63Hz
Input Current: 4.0A at 100VAC / 2.0A at 240VAC
Inrush current: <120A @ 230 VAC, Cold Start
Power Factor: 0.98 min. @100VAC 60Hz Full load
0.92 min. @240VAC 50Hz Full load
Input Protection: Internal T3.15A / 250V Fuse (Line & Neutral)
No Load Input Power: <0.5W @ 230VAC
Output characteristic:
Line Regulation: ±1%
Load Regulation: ±2%
Transient Response: ±5%, 5%-50% or 50-100%, slew rate 1A/μS
Ripple and Noise: 1% pk-pk typical
Protection:
Over-Voltage : 110-150% Latching
Over-Load : 110-150% (Hiccup Mode, Auto-Recovery)
Short Circuit: Hiccup Mode
Over-Temperature : Latching,recycle input and cool to reset
General characteristic:
Efficiency: 90%/94% typical at 115VAC/230VAC, full load
MTBF: 200K Hours, Mil-217F at 25 °C, full load
Isolation: Input to Output: 4000 VAC, 2xMOPP
Input to Ground (Class I): 1500 VAC, 1xMOPP
Output to Ground (Class I):1500 VAC, 1xMOPP
Operating Temperature : 0°C~+50°C
Shock : 294m/s² (30G) , 10mS on 3 axes
Vibration : 10-500 Hz, 19.6 m/s²(2G), 20mins on 3 axes
EMC : IEC60601-1-2 4th Edition
Emissions : EN55011, FCC Part J15, Class B, Conducted
EN55011, FCC Part J15, Class B, Radiated
Safety Approvals :IEC/EN60601-1 2 Ed. and IEC60601-1 3.1 Ed.
ANSI / AAMI ES60601-1
CSA C22.2 No 60601-1
CE Mark
Our Services:
13 years experience of converter industry.
3 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
Medical 60601-1,ROHS,EMC Certificate or Compliance
