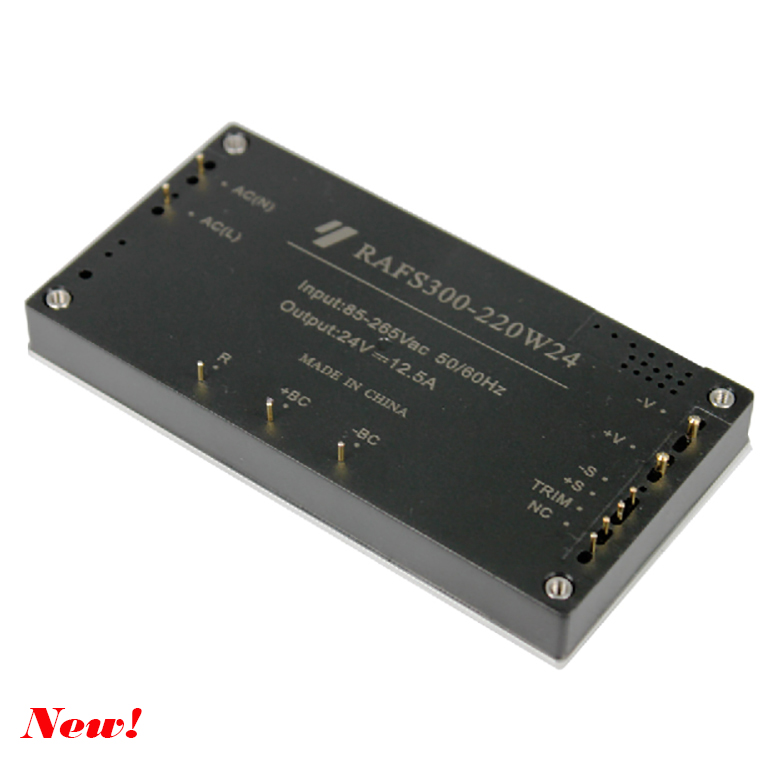

Jul 21 , 2023 AC-DC Power Module RAFS300-220W24 Industrial & Railway | Ahhesionpower.com

300W Full Brick ,24V output AC-DC Power Module ,with Active PFC and 90% High efficiency Features: Model: RAFS300-220W24 Full Brick（116.8mm×61.0mm×12.7mm） Output Voltage Adjust Range：±10 % of the rated output voltage Output Short-circuit Protection, hiccup, auto-recovery High Power Factor,High Efficiency,High Stable Voltage Accuracy High efficiency,90% typ.（230Vac,Full Load） 3000Vac I/O Isolation V...

Apr 24 , 2023 DC-DC Converter WSD75W Series Industrial & Railway | Ahhesionpower.com

Wide input 18-75V,75W Isolated DC/DC Converters, with Sixteen brick Footprint and 92% typ. High Efficiency Features: Model: WSD75W Series Industry Standard Sixteenth-brick Without metal baseplate: 33.0×22.9×10.7mm,With metal baseplate: 33.0×22.9×12.7mm Ultra High Power Density: 11W/cm3 （Without metal baseplate）,9.2W/cm3（With metal baseplate） Input Under Voltage Protection（14V to 18V turn off） Posi...

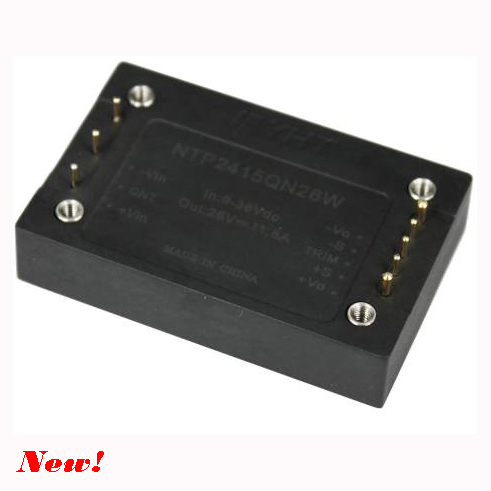

Feb 17 , 2023 NTP2415QN26W Industrial & Railway Non-Isolated DC-DC Converter | Ahhesionpower.com

Designed for wide Input 9V-36V, Output 26V/11.5A Non-isolated DC/DC Converters, with features of typical 96% high efficiency and Quarter Brick package Features: Quarter Brick：60.6mm×39.01mm×12.7mm Wide Input Voltage（9.0Vdc～36.0Vdc） Input Under Voltage Threshold（8.1Vdc～8.9Vdc） Input Under Voltage Resume Point（9.0Vdc～10.0Vdc） Negative Logic Control（0V to 1V turn on or CNT floating） Output Voltage Ad...

Jan 07 , 2022 RDH260-48S250 Industrial & Railway DC-DC Converter | Ahhesionpower.com

Designed for 250V output ,260W DC/DC Converter ,with features of half brick size,High efficiency up to 93% and Compliance with EN50155 railway standard Features: Standard Half Brick（61.0mm×57.9mm×12.7mm） Input Under Voltage Protection（30 to 36.0Vdc Turn off） Positive Logic Control（3.5V to 15V or floating Turn on） Output Voltage Adjust Range: ±10% of the rated output voltage Output Short-circuit Pr...

Jul 15 , 2021 RELS30-110B12 Railway DC DC Converter ,Wide input 40-160V ,1in.×2in. Size

Designed for wide Input 40-160V, Output 12V/2.5A , RELS 30W Series DC/DC Converters Features 1in.×2in.Industry Standard Size（50.8mm×25.4mm×12.7mm） Wide Input Voltage (40V~160V） Positive Logic Control(3.5V to 15V turn on) Output Voltage Adjust Rang:±10% of the rated output voltage Output short-circuit protection, hiccup,auto-recovery High efficiency, 87% typ.(Input 110V, Ionom) 1500Vac Isolation Vo...

May 18 , 2021 ZDR/ZDG 30W Series Industrial electronics 1in.×1in. untra-small size DC/DC Converter

Input 9-36V, Output 5,12,15,24V, 30W Version, 1in.×1in. Size The design is suitable for untra-small size and high power density DC/DC Converters of Photoelectric communication equipments ,Intelligent instrumentation and Industrial electronics & control system etc.

May 10 , 2021 YPD600-110S24+ Current sharing design ,achieve up to 1200W DC/DC Converter

Input 66- 160V in, Output 24V/600W, Full-Brick Series ,up to 90% typical efficiency Introduced the YPD600-110S24 DC-DC Converter can be connected to increase power in parallel. Besides input pins and output pins are connected in parallel, the PC pins should be connected.Achieve up to 1200W realised by connecting 2 units in parallel.

May 10 , 2021 RAHS50-110E48 1:8 Ultra-wide input Railway DC/DC Converter

Input 34V-250V, Output 48V/ 50W, Half-Brick Series. A new 1:8 Ultra-wide input range of compact half brick, baseplate cooled 50W DC-DC Converter applied for Railway &Rail transit, Conforming to the EN50155 Standard
