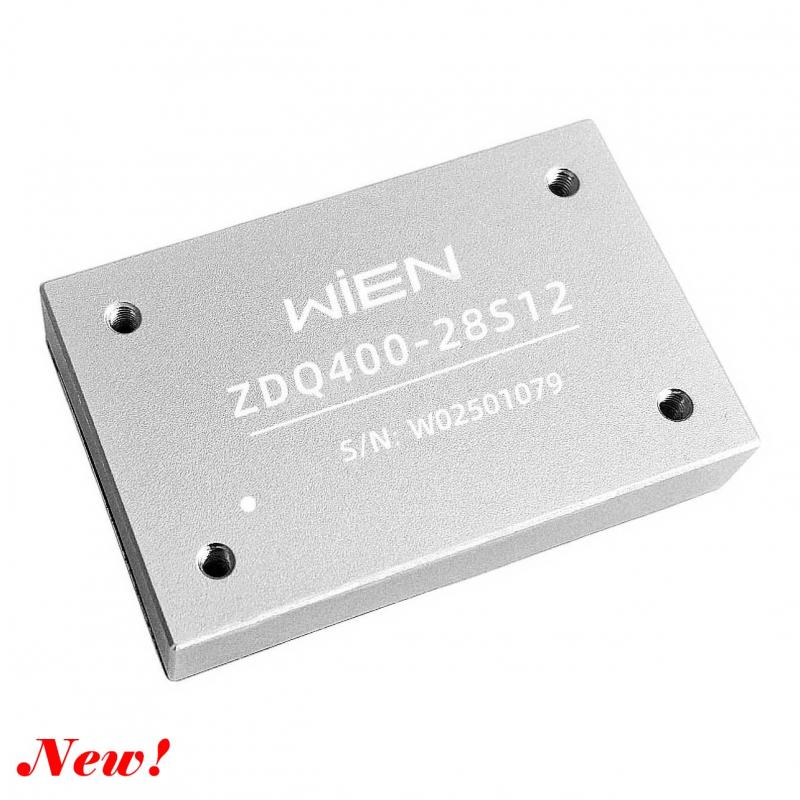

DC-DC Converter ZDQ400-28S12C
The ZDQ400-28S12C DC/DC Converters are widely applicable to Telecommunications, Electronic Data Processing, Distributed Power Architecture and Industry System.
Product Information:
Model: ZDQ400-28S12C
Quarter Brick（60.6mm×39.0mm×12. 7mm）
Input Under Voltage Protection（13.0 to 16.0Vdc Turn off）
Positive Logic Control（3.5V to 15V or floating Turn on）
Output Voltage Adjust Range: ±10% of the rated output voltage
Output Over Voltage Protection, Output Over Current Protection
Output Short-circuit Protection, automatic recovery
High Efficiency up to 93%（28V, full load）
2250Vdc Isolation Voltage
Operation Case Temperature -40℃ to +105℃
110℃ Typ. Over Temperature Protection
Applications：telecommunication applications,electronic data Processing, distributed power architecture and industry systems, etc.
Electrical Specification:
Input characteristic:
Input Voltage Range: 16-40Vdc
Output characteristic:
Output Voltage/Current : 12V/33.3A
Line Regulation: ±0.2% VO
Load Regulation: ±0.5% VO
Ripple and Noise: 100mV Max @Vin=Vintyp, Io,nom , 20MHz bandwidth, a 47μF ceramic capacitor applied at output
General characteristic:
Switching Frequency: 150KHz(typ.)
The typical Efficiency value is 93%
MTBF: 2×106h @Bellcore TR332,Tc=25℃
Baseplate Temperature: -40℃ to +105℃
Storage Temperature: -55℃ to +125℃
Our Services:
18 years experience of converter industry.
5 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
ROHS Compliance
FAQ:
Q: what can you buy from us?
A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Is it acceptable to print my logo on the product?
A: Yes. based on a certain purchase quantity,we can make OEM logo.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 or 5-year warranty for our products.
Q: What if I cannot find what I need on your products list?
A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
