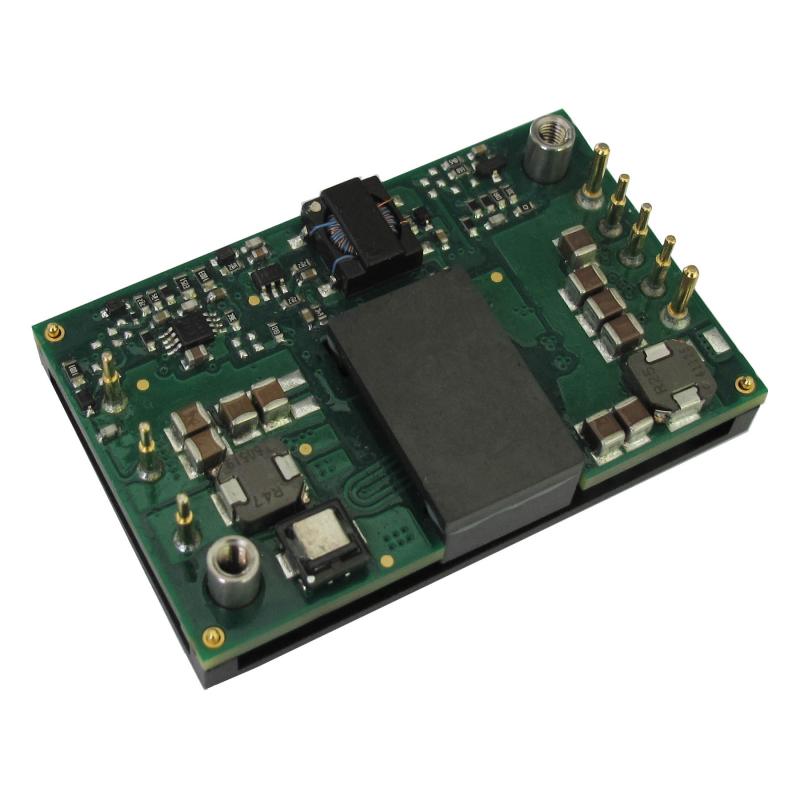

DC-DC Converter YQD65-132W Series Quarter brick
The YQD65-132W Series DC/DC Converters are widely applicable to Telecommunications, Electronic Data Processing, Distributed Power Architecture and Industry system.
Product Information:
Model: YQD65-132W Series
Quarter Brick（57.9mm×36.8mmx11.0mm）
Control And Trim Functions
Input UVP,OVP,OCP,OTPOutput Short-circuit Protection, hiccup,auto-recovery
I/O Isolation Voltage 1500Vdc
High efficiency up to 93%
Operating Temperature :-40℃ to +85℃
Non-air-cooled heat dissipation mode can be connected by heat sink transfer plateRemote On/off Control
Warranty Period: 5-year
Electrical Specification:
Input characteristic:
Input Voltage Range: 18-36Vdc, 36-75Vdc
Output characteristic:
Output Voltage/Current : see tables - technical datasheets
Line Regulation: ±0.3% V01,V02
Load Regulation: ±0.5% V01,V02
Ripple and Noise: 50mV -100mV (typ.)
General characteristic:
Switching Frequency: 400KHz(typ.)
Efficiency: 85% - 93% Max.
MTBF: 2×106h @Bellcore TR332,Tc=25℃
Case Temperature: -40℃ to +85℃
Storage Temperature: -55℃ to +125℃
Temperature Coefficient: ±0.02%/℃
Our Services:
17 years experience of converter industry.
5 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
ROHS Compliance
FAQ:
Q: what can you buy from us?
A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Is it acceptable to print my logo on the product?
A: Yes. based on a certain purchase quantity,we can make OEM logo.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 or 5-year warranty for our products.
Q: What if I cannot find what I need on your products list?
A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
