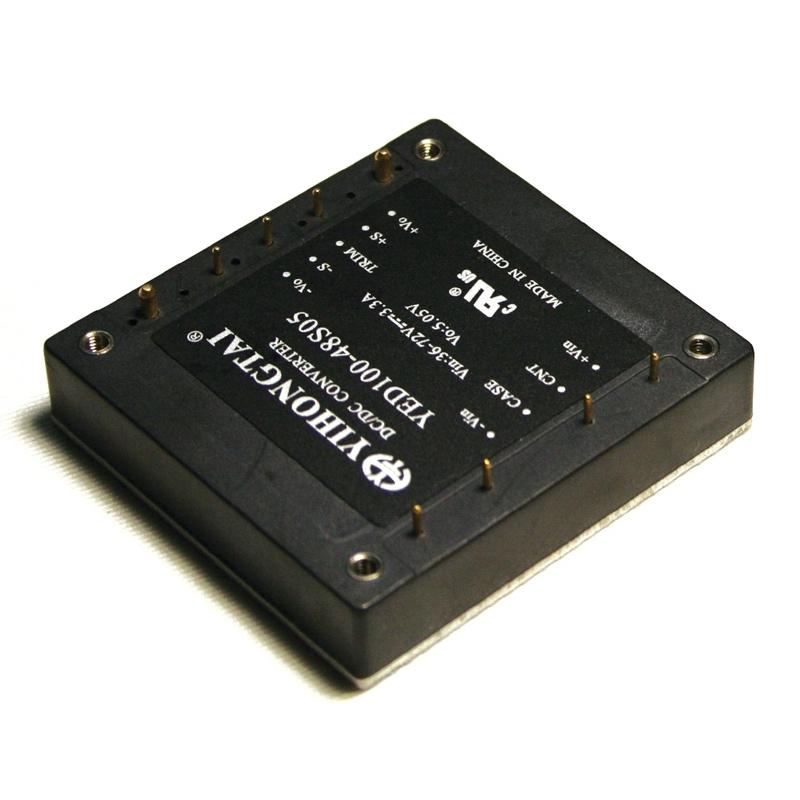

DC/DC Converter YED50-150W Series

Half brick size 50-150W DC/DC Converters, with features of OVP,OCP,OTP and Output Short-circuit Protection

  • Item no.:

    YED50-150W
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    black
  • Min order:

    50
  • Product weight:

    80G
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-12 Weeks
  • Product Details

DC-DC Converter YED50-150W Series


The YED50-150W Series DC/DC Converters are widely used in Widely applicable to Telecommunications, Electronic Data Processing, Distributed Power Architecture. Quality is guaranteed, welcome to buy!


Product Information:

Model: YED50-150W

Half-Brick61.0mm×57.9mm×12.7mm)

Positive Logic, Remote on/off

Input Under voltage Protection

Output Current Limit Protection(OCP)

Output Over Voltage Protection(OVP)

Over Temperature Protection (OTP)

Output Short-circuit Protection, hiccup, auto-recovery

Isolation Voltage: 1500Vdc /1min/1mA (Input-Output)

                                  1050Vdc /1min/1mA (Input-Case)

                                  500Vdc /1min/1mA (Output- Case)

Operating Case Temp: -40℃to 100℃

Warranty Period: 5-year


Electrical Specification:

Input characteristic:

Input Voltage Range: 18-36Vdc, 36-72Vdc, 66-160Vdc


Output characteristic:

Output voltage/Current : see tables - technical datasheet

Line Regulation:   ±0.2% max.

Load Regulation: ±0.5% max.

Ripple and Noise: 50mV-100mV Max

Temperature Coefficient: ±0.02%/℃


General characteristic:

Switching Frequency: 300KHz(typ.)

Efficiency: 88% typical.

MTBF: 1.5×106h @Bellcore TR332,Tc=25℃

Case Temperature: -40℃ to +100℃

Storage Temperature: -55℃ to +105℃


Our Services:

13 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

CE,ROHS Certificate or Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,isolated power supply module


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
