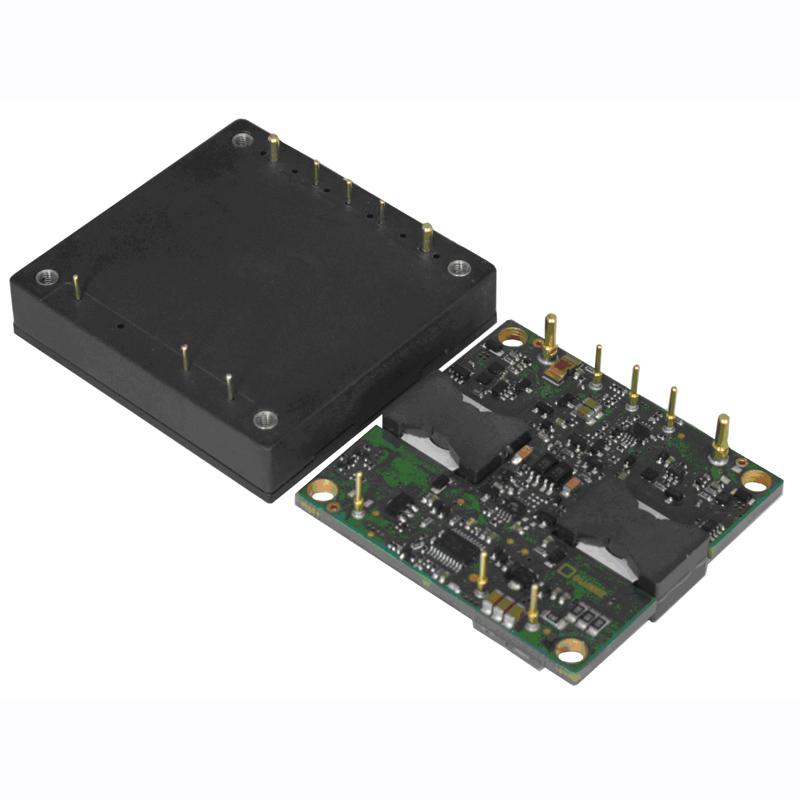

DC/DC Converters ZDH200-48BS24

Design for wide input 18-75V, 24V/200W DC/DC Converter, with features of Half brick size and High efficiency up to 92.5%.

  • Item no.:

    ZDH200-48BS24
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    black
  • Min order:

    50
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-12 Weeks
  • Product Details

DC-DC Converter ZDH200-48BS24


The ZDH200-48BS24 DC/DC Converters are widely used in Widely applicable to Telecommunications, Electronic Data Processing, Distributed Power Architecture and Rail transit and Railway etc. Quality is guaranteed, welcome to buy!


Product Information:

Model: ZDH200-48BS24

Half Brick57.9mm×61mm×12.7mm

Input Under Voltage Protection15.0 to 18.0Vdc Turn off

Positive Logic Control3.5V to 15V or floating Turn on

Output Over Voltage Protection28.8V to 33.6V

Output Over Current Protection

Output Voltage Adjust Range: ±10% of the rated output voltage

Output Short-circuit Protection, automatic recovery

High Efficiency up to 92.5%24V,full load

1500Vdc I/O Isolation Voltage

110 Typ. Over Temperature Protection

Operation Ambient Temperature -40 to +85

Operation Baseplate Temperature :-40 to +100

Warranty Period: 5-year


Electrical Specification:

Input characteristic:

Input Voltage Range: 18-75Vdc


Output characteristic:

Output voltage/Current : 24Vdc /8.4A

Line Regulation:   ±0.3% max.

Load Regulation:  ±0.5% max.

Ripple and Noise:  200mV Max.

Temperature Coefficient: ±0.02%/℃


General characteristic:

Switching Frequency: 240KHz(typ.)

Efficiency: 92.5% typical.

MTBF: 2×106h @Bellcore TR332,Tc=25℃

Case Temperature:      -40℃ to +85℃

Storage Temperature: -55℃ to +125℃


Our Services:

13 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,isolated power module


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
