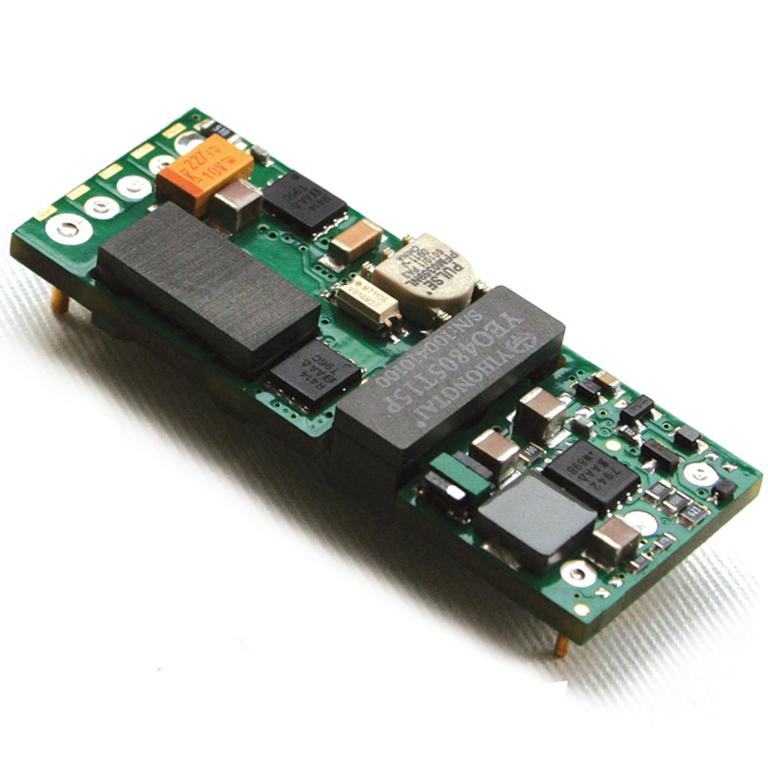

DC-DC Converter YEO Series Eighth brick
The YEO Series DC/DC Converters are widely applicable to Telecommunications, Electronic Data Processing, Distributed Power Architecture.
Product Information:
Model: YEO Series
Eighth brick（57.9mm×22.7mm×11.0mm）
Input UVP,OVP,OCP,OTPOutput Short-circuit Protection, hiccup,auto-recovery
I/O Isolation Voltage 1500Vdc
High efficiency up to 94%
Operating Temperature :-40℃ to +85℃
Remote On/off Control
Warranty Period: 5-year
Electrical Specification:
Input characteristic:
Input Voltage Range: 36-75Vdc
Output characteristic:
Output Voltage/Current : see tables - technical datasheets
Line Regulation: ±0.3% V0
Load Regulation: ±0.3% V0
Ripple and Noise: 50mV-100mV (typ.)
Temperature Coefficient: ±0.02%/℃
General characteristic:
Switching Frequency: 310KHz(typ.)
Efficiency up to 94%
MTBF: 2×106h @Bellcore TR332,Tc=25℃
Case Temperature: -40℃ to +85℃
Storage Temperature: -55℃ to +125℃
Vibration: Sine，Frequency：10Hz-55Hz，Amplitude:0.35mm，30 min in each of 3 perpendicular directions
Shock: Half sine, peak acceleration:300m/s², duration:6 ms ; continuous 6 times of pulse in each of 3 perpendicular directions
