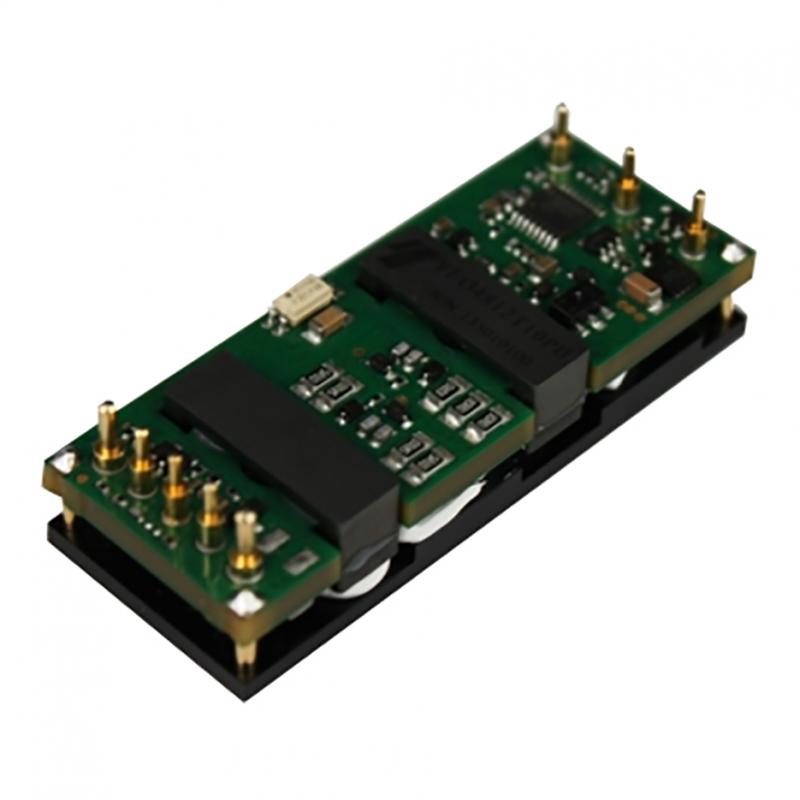

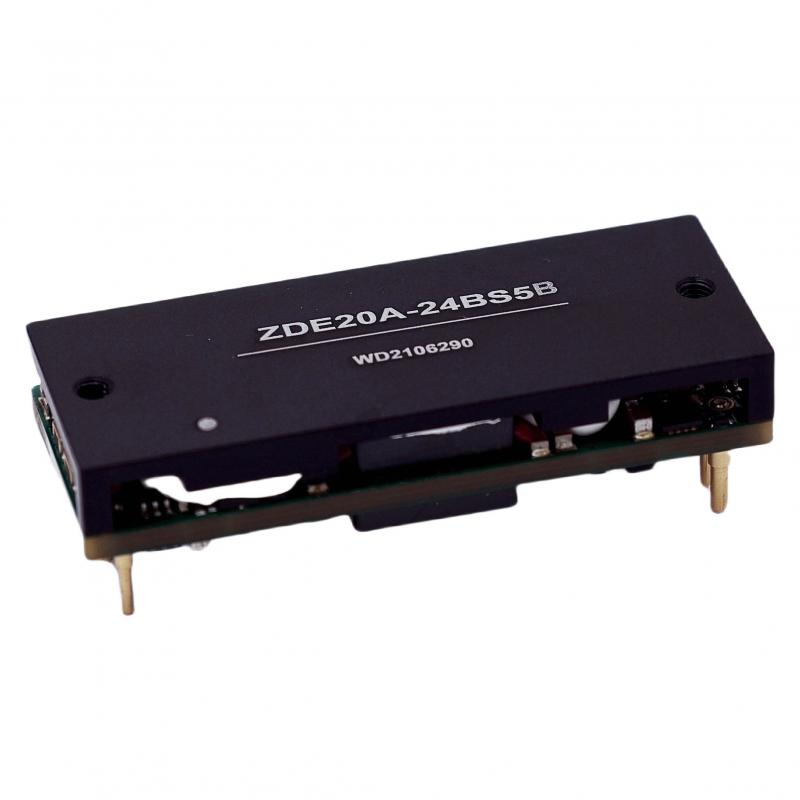

DC-DC Converter ZDE20A-24BS5B
This Isolated DC/DC Converter is widely used in Telecom /Datacom ,Electronic data Processing, distributed power architecture, Industry, Rail transit and railway etc.
Product Information:
Model: ZDE20A-24BS5B
Eighth
Brick 58.4mm×22.8mm×10.0mm,no heatsink,
58.4mm×22.8mm×12.7mm,including heat sink
Input Under Voltage Protection（6.0 to 8.9Vdc Turn off）Positive Logic Control（3.5V to 15V or floating Turn on）
Output Over Voltage Protection（6V to 7V）
Output Voltage Adjust Range: ±10% of the rated output voltage
Output Short-circuit Protection, automatic recovery
High Efficiency up to 92%（24V，full load）
1500Vdc Min. Isolation Voltage
Operation Ambient Temperature -40℃ to +85℃
120℃ Typ. Over Temperature Protection
Warranty Period: 5-year
Electrical Specification:
Input characteristic:
Input Voltage Range: 9-36Vdc
Output characteristic:
Output Voltage/Current : 5V/20A
Line Regulation: ±0.2% V0
Load Regulation: ±0.5% V0
Ripple and Noise: 100mV (Min.)
Temperature Coefficient: ±0.02%/℃
General characteristic:
Switching Frequency: 250KHz(typ.)
High Efficiency up to 92%
MTBF: 2×106h @Bellcore TR332,Tc=25℃
Case Temperature: -40℃ to +85℃
Storage Temperature: -55℃ to +125℃
Vibration: Sine，Frequency：10Hz-55Hz，Amplitude:0.35mm，30 min in each of 3 perpendicular directions
Shock: Half sine, peak acceleration:300m/s², duration:6 ms ; continuous 6 times of pulse in each of 3 perpendicular directions
Our Services:
13 years experience of converter industry.
5 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
ROHS Compliance
FAQ:
Q: what can you buy from us?
A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Is it acceptable to print my logo on the product?
A: Yes. based on a certain purchase quantity,we can make OEM logo.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 or 5-year warranty for our products.
Q: What if I cannot find what I need on your products list?
A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
