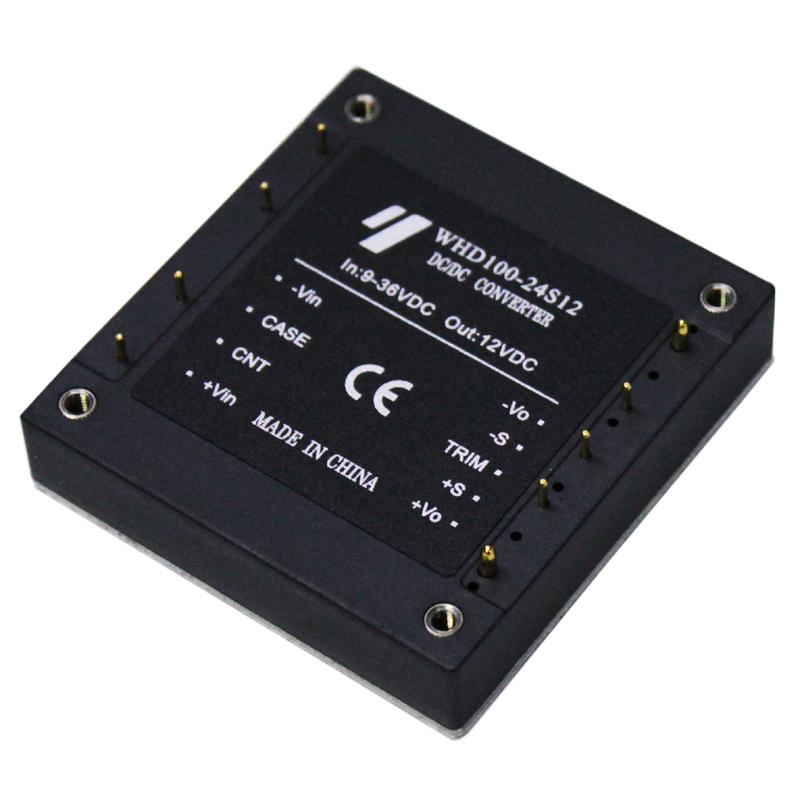

DC-DC Converter WHD100-24S12
The WHD100-24S12 DC/DC Converters are widely applicable to Telecom/ Datacom system equipments, Railway & Rail transit ,Industrial control equipments and Instrument.
Product Information:
Model: WHD100-24S12
Half-Brick（61.0mm×57.9mm×12.7mm）
Positive Logic Control（3.5V to 15V turn on）
Output Current Limit Protection(OCP)
Output Over Voltage Protection（OVP）
Output Voltage Adjust Range: ±10% of the rated output voltage
Over Temperature Protection （OTP）
Output Short-circuit Protection, hiccup,auto-recovery
Typical efficiency 87% (input:24V IO,max)
1500Vdc Isolation Voltage(Input to output)
Baseplate Temperature :-40℃ to +100℃
Warranty Period: 5-year
CE Certificates
Electrical Specification:
Input characteristic:
Input Voltage Range: 9-36Vdc
Output characteristic:
Output voltage/Current : 12Vdc /8.33A
Line Regulation: ±0.2% max.
Load Regulation: ±0.5% max.
Ripple and Noise: 100mV (Max.)
Temperature Coefficient: ±0.02%/℃
General characteristic:
Switching Frequency: 280KHz(typ.)
Efficiency: 87% typical.
MTBF: 1.5×106h @Bellcore TR332,Tc=25℃
Case Temperature: -40℃ to +100℃
Storage Temperature: -55℃ to +125℃
Our Services:
15 years experience of converter industry.
5 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
CE,ROHS Certificate or Compliance
FAQ:
Q: what can you buy from us?
A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,power supply isolated
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Is it acceptable to print my logo on the product?
A: Yes. based on a certain purchase quantity,we can make OEM logo.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 or 5-year warranty for our products.
Q: What if I cannot find what I need on your products list?
A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
