DC/DC Converters WHD100-48S48

Designed for wide input 18-75V ,48V/100W DC-DC Converter, with features of High efficiency 89% and Baseplate Working Temperature :-40 to +100

  • Item no.:

    WHD100-48S48
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    black
  • Min order:

    50
  • Product weight:

    70G
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-12 Weeks
  • Product Details

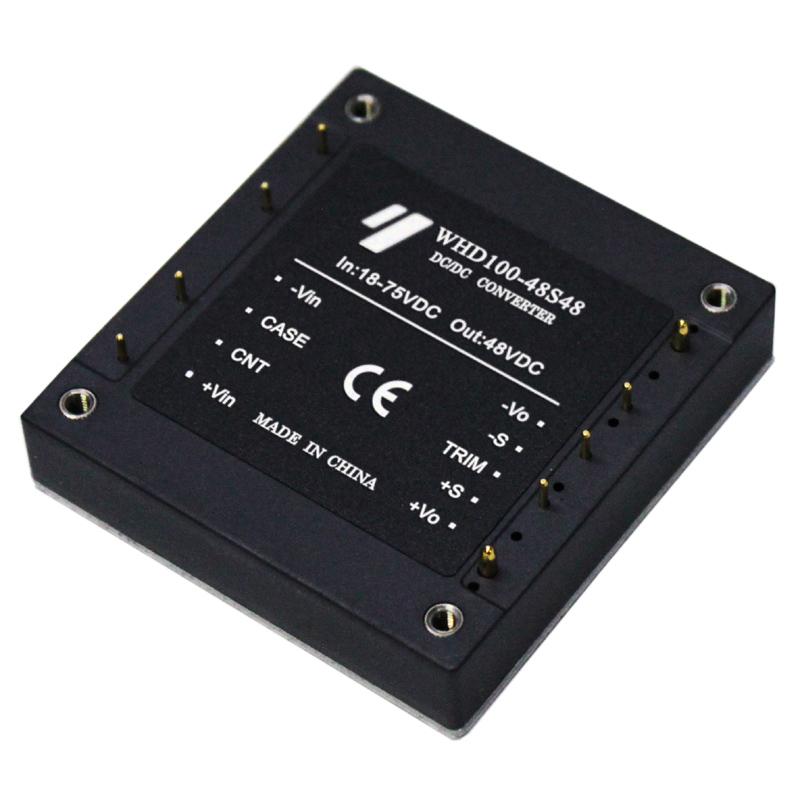

DC-DC Converter WHD100-48S48


The WHD100-48S48 DC/DC Converters are widely used in Widely applicable to Telecommunications, Electronic Data Processing, Distributed Power Architecture. Quality is guaranteed, welcome to buy!


Product Information:

Model: WHD100-48S48

Half-Brick61.0mm×57.9mm×12.7mm

CE Certificate , RoHS compliance

Positive Logic Control3.5V to 15V turn on

Output Current Limit Protection(OCP)

Output Over Voltage ProtectionOVP

Output Voltage Adjust Range: ±10% of the rated output voltage

Over Temperature Protection OTP

Output Short-circuit Protection, hiccup,auto-recovery

Typical efficiency 89% (input:24V IO,max)

1500Vdc Isolation Voltage(Input to output)

Baseplate Temperature :-40 to +100

Warranty Period: 5-year


Electrical Specification:

Input characteristic:

Input Voltage Range: 18-75Vdc


Output characteristic:

Output voltage/Current : 48Vdc /2.08A

Line Regulation:   ±0.2% max.

Load Regulation:  ±0.5% max.

Ripple and Noise:  300mV (Max.)

Temperature Coefficient: ±0.02%/℃


General characteristic:

Switching Frequency: 260KHz(typ.)

Efficiency: 89% typical.

MTBF: 1.5×106h @Bellcore TR332,Tc=25℃

Case Temperature:      -40℃ to +100℃

Storage Temperature: -55℃ to +125℃


Anhui Hesion Services:

13 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

CE,ROHS Certificate or Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,power supply isolated


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
