DC/DC Converters YFD300-400W Series

Full brick 300-400W DC/DC Converters, with features of OVP,OCP,OTP and Baseplate Temperature -40℃ to +100

  • Item no.:

    YFD300-400W Series
  • Product origin:

    China
  • Color:

    black
  • Min order:

    50
  • Product weight:

    150G
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-12 Weeks
  • Product Details

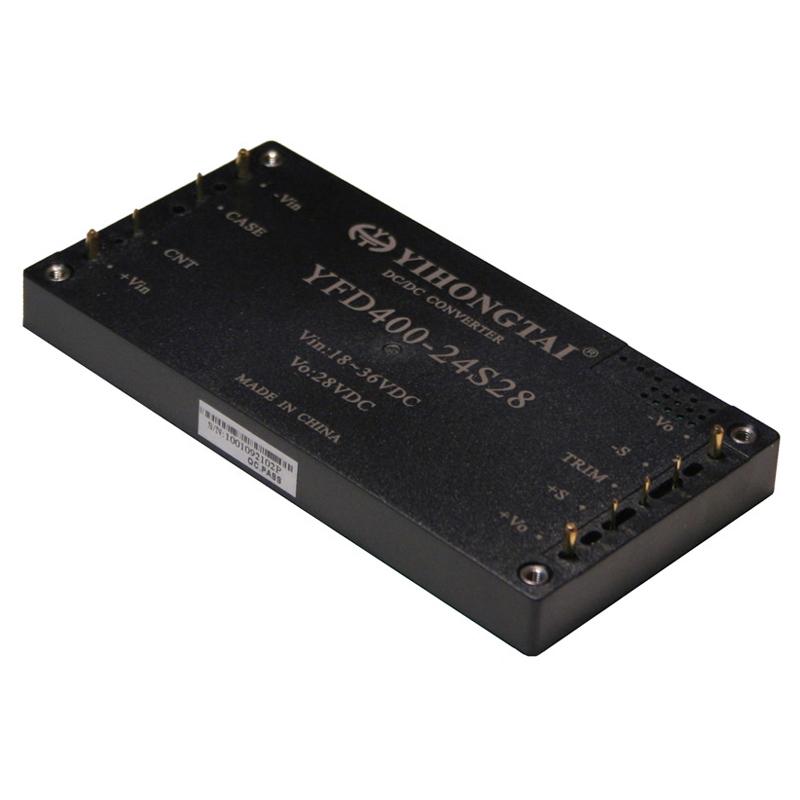

DC-DC Converter YFD300-400W Series


The YFD300-400W Series DC/DC Converters are widely used in widely applicable to Telecom& Datacom ,Industry, Rail transit and Railway etc.


Product Information:

Model: YFD300-400W

Full Brick116.8mm×61.0mm×12.7mm

Positive Logic Control3.5V to 15V turn on

Output Over Voltage Protection

Output Over Current Protection

Output Short-circuit Protection, hiccup, auto-recovery

High efficiency, 88%24VFull Load

1500Vdc Isolation Voltage

Baseplate Temperature :-40 to +100

110 Typ. Over Temperature Protection

Warranty Period: 5-year


Electrical Specification:

Input characteristic:

Input Voltage Range: 18-36Vdc, 36-72Vdc, 66-160Vdc


Output characteristic:

Output Voltage/Current : see tables - technical datasheet

Line Regulation:   ±0.2%VO

Load Regulation:  ±0.5%VO

Ripple and Noise: 200mV Max

Temperature Coefficient: ±0.02%/℃


General characteristic:

Switching Frequency: 220KHz(typ.)

Efficiency: 88% typical.

MTBF: 2×106h @Bellcore TR332,Tc=25℃

Case Temperature:      -40℃ to +100℃

Storage Temperature: -55℃ to +105℃


Our Services:

13 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,isolated dc to high voltage dc converters


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
