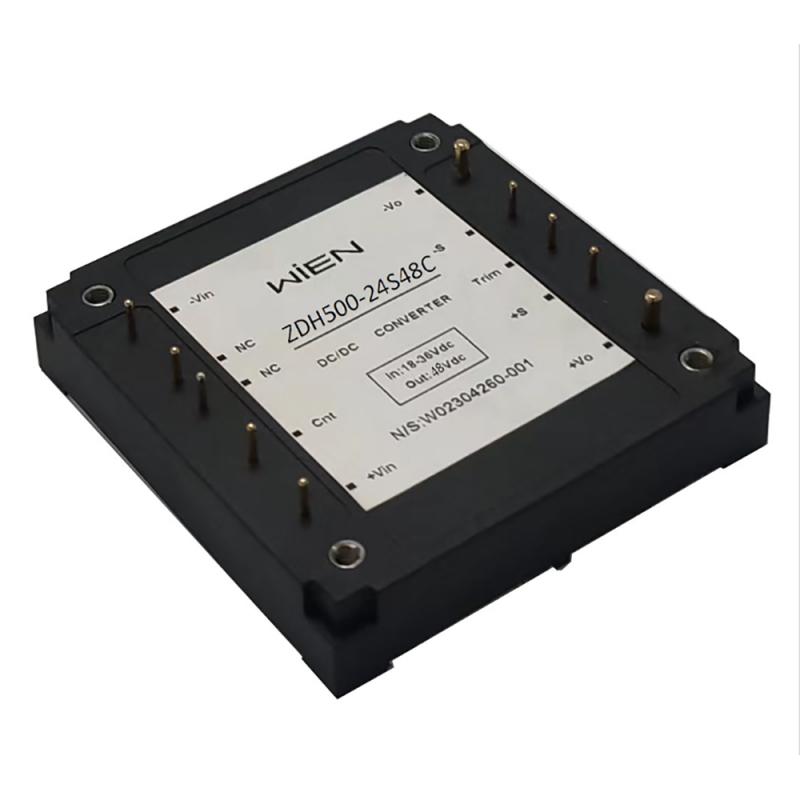

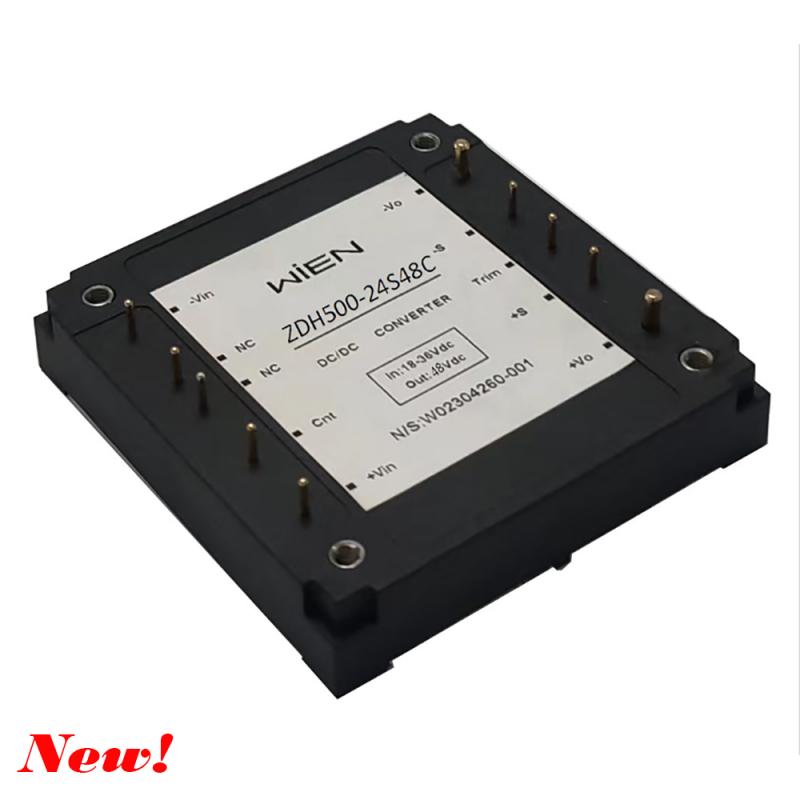

DC-DC Converter ZDH500-24S48C
The ZDH500-24S48C DC/DC Converters are widely applicable to Telecommunications, Electronic Data Processing, Distributed Power Architecture ,Industrial Electronics & Equipment etc.
Product Information:
Model: ZDH500-24S48C
Half Brick（60.7mm×63.2mm×12.7mm）
Input Under Voltage Protection（13.0 to 17.5Vdc Turn off）
Positive Logic Control（6.5V to 15V or floating Turn on）
Output Voltage Adjust Range: 70%~110% of the rated output voltage
Output Over Voltage, Output Over Current Protection
110℃ Typ. Over Temperature Protection
Output Short-circuit Protection, automatic recovery
High Efficiency up to 92.5%（24V,full load）
500Vdc Min. Isolation Voltage
Operation Ambient Temperature: -40℃ to +85℃
Operation Baseplate Temperature:-40℃ to +100℃
Warranty Period: 5-year
Electrical Specification:
Input characteristic:
Input Voltage Range: 18-36Vdc
Output characteristic:
Output voltage/Current : 48Vdc /10.4A (A fixed output voltage can be adjusted during 36V to 50V)
Line Regulation: ±0.5% max.
Load Regulation: ±0.5% max.
Ripple and Noise: 250mV Max.@Vin=Vintyp, Io,nom , 20MHz bandwidth
General characteristic:
Switching Frequency: 250KHz(typ.)
Efficiency: 92.5% typical.
MTBF: 2×106h @Bellcore TR332,Tc=25℃
Operation Ambient Temperature -40℃ to +85℃
Operation Baseplate Temperature -40℃ to +100℃
Storage Temperature: -55℃ to +125℃
Our Services:
15 years experience of converter industry.
5 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
ROHS Compliance
FAQ:
Q: what can you buy from us?
A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,isolated power module
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Is it acceptable to print my logo on the product?
A: Yes. based on a certain purchase quantity,we can make OEM logo.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 or 5-year warranty for our products.
Q: What if I cannot find what I need on your products list?
A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
