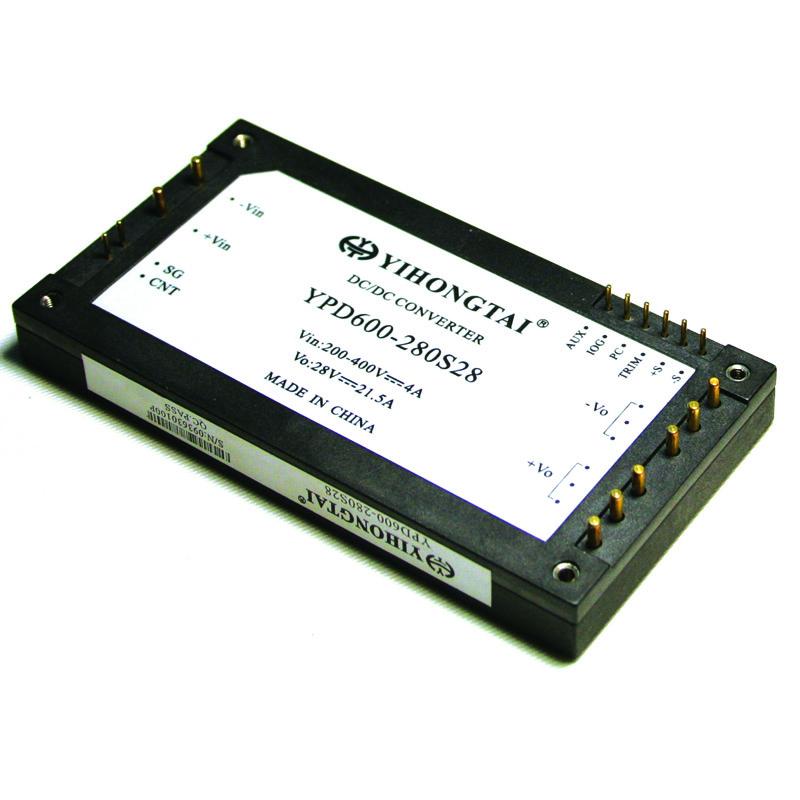

DC/DC Converters YPD150-600W Series

Input range 200-400V DC/DC Converters with Output Current Sharing Function, applicable to Electric Power and Mining Power etc.

  • Item no.:

    YPD150-600W Series
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    black
  • Min order:

    50
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-12 Weeks
  • Product Details

DC-DC Converter YPD150-600W Series


The YPD150-600W Series DC/DC Converters are applicable to Electric Power and Mining Power Etc.


Product Information:

Model: YPD150-600W

High Voltage Input 200~400Vdc

Operating Baseplate Temperature -40°C- +100°C

With a current sharing pin,can be used in parallel

I/O isolation 1500Vac

Output Over Voltage Protection

Output Over Current Protection

110 Typ. Over Temperature Protection

Output Short-circuit Protection, Self recovery

Remote On/Off Control

Warranty Period: 5-year


Electrical Specification:

Input characteristic:

Input Voltage Range: 200-400Vdc (280Vdc typ.)


Output characteristic:

Output Voltage/Current : see tables - technical datasheet

Line Regulation:   ±0.2%VO

Load Regulation:  ±0.5%VO

Ripple and Noise:  240mV( typ.)

Temperature Coefficient: ±0.02%/℃


General characteristic:

Switching Frequency: 240KHz(typ.)

Efficiency: 86% -91%

MTBF: 2×106h @Bellcore TR332,Tc=25℃

Case Temperature:      -40℃ to +100℃

Storage Temperature: -55℃ to +105℃


Our Services:

13 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
