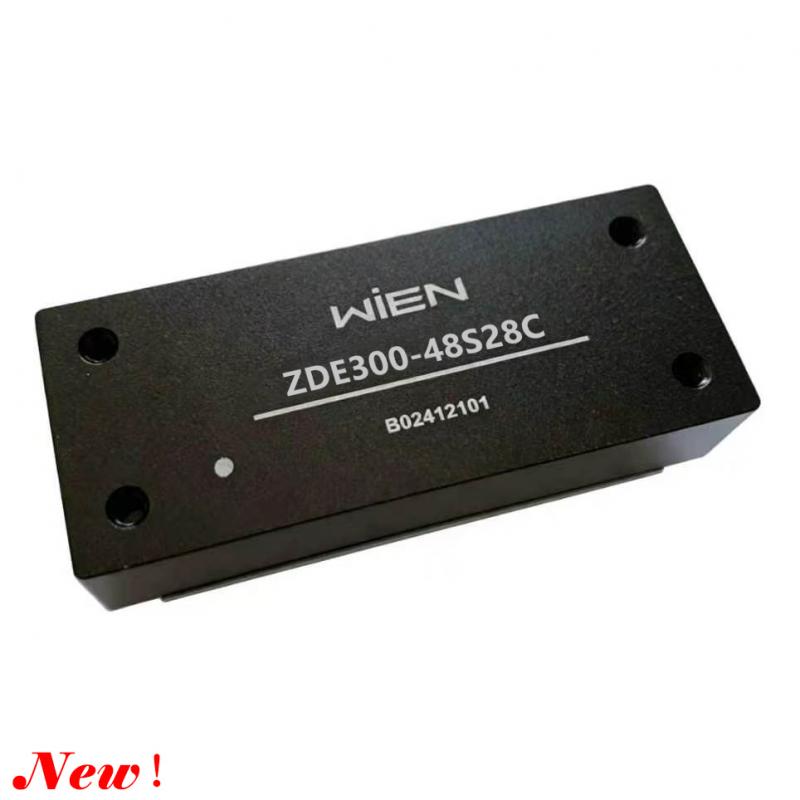

DC-DC Converter ZDE300-48S28C Eighth brick
The ZDE300-48S28C DC/DC Converters are widely applicable to Telecommunications, Electronic Data Processing, Distributed Power Architecture and Industrial control equipments and Instrument.etc.
Product Information:
Model: ZDE300-48S28C Eighth brick
1/8-inch Brick (61.0mm × 25.2mm × 12.7mm)
Input Under Voltage Protection (33 to 36Vdc Turn off )
Positive Logic (3.5V to 15V or floating Turn on )
Output Over Voltage Protection (32.2 ~ 37.2Vdc)
Output Voltage Adjust Range: ±10% Vo
Output Over Current Protection
Output Short-Circuit Protection, automatic recovery
High Efficiency up to 93% (48V, Full load)
1500Vdc Isolation Voltage
Operation Baseplate Temperature : -40℃ to +105℃
Warranty Period: 5-year
Electrical Specification:
Input characteristic:
Input Voltage Range: 36-75Vdc
Output characteristic:
Output Voltage/Current :28V / 10.72A
Line Regulation: ±0.2% V0
Load Regulation: ±0.5% V0
Ripple and Noise: 280mV @Vin=28Vdc, Io,nom , 20MHz bandwidth, parallel line tooling test, a 1μF and a 10μF ceramic capacitor applied at output.
General characteristic:
Switching Frequency: 210KHz(typ.)
High Efficiency up to 93% typ.（Vin=28V, IO,nom）
MTBF: 2×106h @Bellcore TR332,Tc=25℃
Case Temperature: -40℃ to +85℃
Storage Temperature: -55℃ to +125℃
Temperature Coefficient: ±0.02%/℃
Our Services:
18 years experience of converter industry.
5 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
ROHS Certificate and Compliance
FAQ:
Q: what can you buy from us?
A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Is it acceptable to print my logo on the product?
A: Yes. based on a certain purchase quantity,we can make OEM logo.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 or 5-year warranty for our products.
Q: What if I cannot find what I need on your products list?
A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
