DC/DC Converters ZDQ100-150W Series Quarter brick

Designed for wide input 9-36V,100-150W DC/DC Converters, with Quarter brick size and High efficiency up to 93%.

  • Item no.:

    ZDQ100-150W Series
  • Product origin:

    China
  • Min order:

    50
  • Shipping port:

    FOB Beijing
  • Lead Time:

    6-8 Weeks
  • Product Details

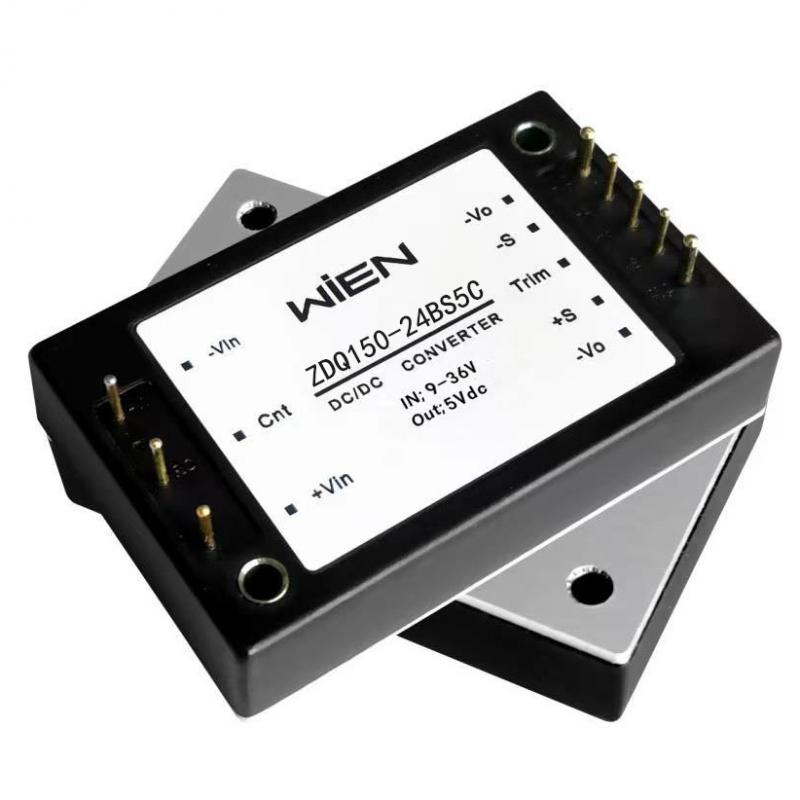

DC-DC Converter ZDQ100-150W Series Quarter brick


The ZDQ100-150W Series DC/DC Converters are widely applicable to Telecommunications, Electronic Data Processing, Distributed Power Architecture and Industry System.


Product Information:

Model: ZDQ100-150W Series

Quarter Brick57.9mm×38.6mm×12.7mm

Input Under Voltage Protection6.0 to 9.0Vdc Turn off

Positive Logic3.5V to 15V or floating Turn on

Output Over Voltage Protection, Output Over Current Protection

Output Voltage Adjust Range: ±10% Vo

Output Short-circuit Protection, automatic recovery

High Efficiency up to 91%24V, full load

1500Vdc Min. Isolation Voltage

110 Typ. Over Temperature Protection

Operation Baseplate Temperature :-40 to +105

Warranty Period: 5-year


Electrical Specification:

Input characteristic:

Input Voltage Range:  9-36Vdc


Output characteristic:

Output Voltage/Current : 5V/30A (12V,24V,28V)

Line Regulation:   ±0.2% VO

Load Regulation:  ±0.5% VO

Ripple and Noise:  70mV Max @Vin=Vintyp, Io,nom , 20MHz bandwidth, a 47μF ceramic capacitor applied at output


General characteristic:

Switching Frequency: 230KHz(typ.)

Efficiency: 91% Typical.

MTBF: 2×106h @Bellcore TR332,Tc=25℃

Baseplate Temperature:     -40℃ to +105℃

Storage Temperature:         -55℃ to +125℃

Temperature Coefficient: ±0.02%/℃


Our Services:

17 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
