DC-DC Converter YEO4812T20 Eighth brick
The YEO4812T20 DC/DC Converters are widely applicable to Telecommunications, Electronic Data Processing, Distributed Power Architecture and Industrial control equipments and Instrument.etc.
Product Information:
Model: YEO4812T20 Eighth brick

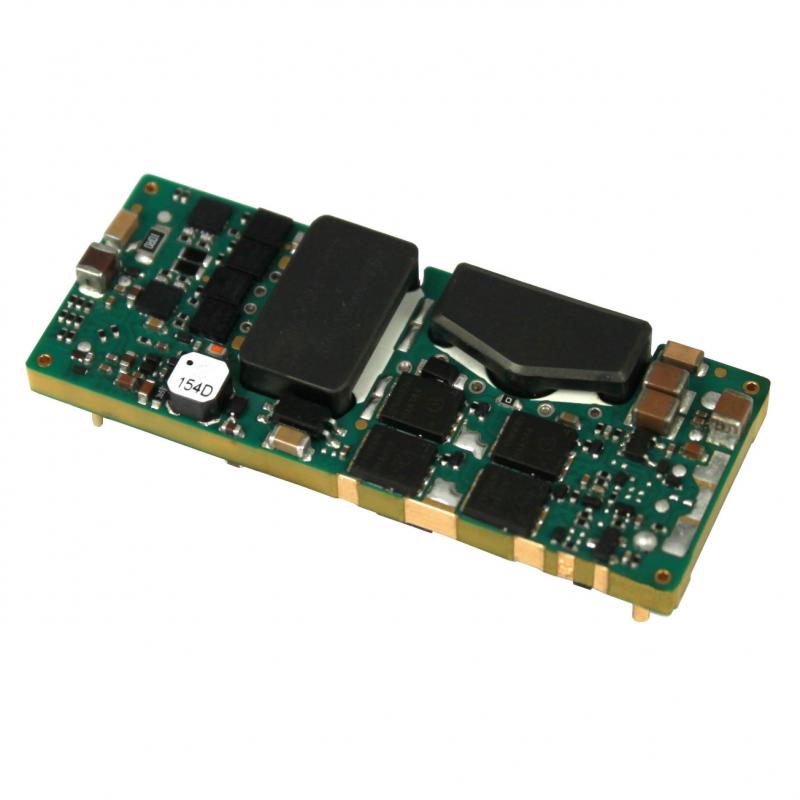

Without baseplate（58.42mm×22.86mm×11.5mm）

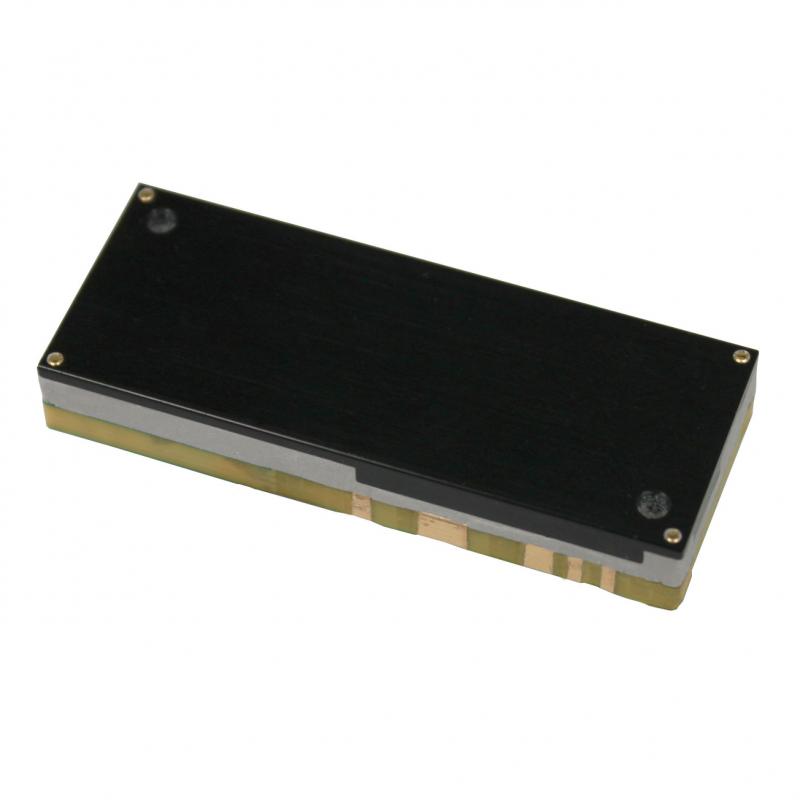

With baseplate（58.42mm×22.86mm×12.7mm）
Rated Power 240W
Ultra-high power density
With baseplate： 14.2W/cm3
Input Under Voltage Protection（30V to 35.5V turn off）
Input transient over voltage 85V(≤100ms）
Positive Logic Control（3.5V to 12V or floating turn on）
Output Over Voltage Protection，Automatic Recovery（13.8V～16.8V）
Output Voltage Adjust Range：0.75～1.1 of the rated output voltage
Output Over Current Protection ,Output Short-circuit Protection（hiccup mode, automatic recovery）
High Efficiency up to 95% typ.（48V, full load）
1500Vdc Isolation Voltage
Operation Ambient Temperature -40℃ to +85℃
Operation Baseplate Temperature -40℃ to +100℃
Over Temperature Protection 115℃ typ
Warranty Period: 5-year
Electrical Specification:
Input characteristic:
Input Voltage Range: 36-75Vdc
Output characteristic:
Output Voltage/Current :12V / 20A
Line Regulation: ±0.5% V0
Load Regulation: ±1.0% V0
Ripple and Noise: 240mV Max.
General characteristic:
Switching Frequency: 180KHz(typ.)
High Efficiency up to 95% typ.（48V, full load）
MTBF: 2×106h @Bellcore TR332,Tc=25℃
Case Temperature: -40℃ to +85℃
Storage Temperature: -55℃ to +125℃
Temperature Coefficient: ±0.03%/℃
Vibration: Sine，Frequency：10Hz-55Hz，Amplitude:0.35mm，30 min in each of 3 perpendicular directions
Shock: Half sine, peak acceleration:300m/s², duration:6 ms ; continuous 6 times of pulse in each of 3 perpendicular directions
Our Services:
17 years experience of converter industry.
5 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
ROHS Certificate and Compliance
FAQ:
Q: what can you buy from us?
A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Is it acceptable to print my logo on the product?
A: Yes. based on a certain purchase quantity,we can make OEM logo.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 or 5-year warranty for our products.
Q: What if I cannot find what I need on your products list?
A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
