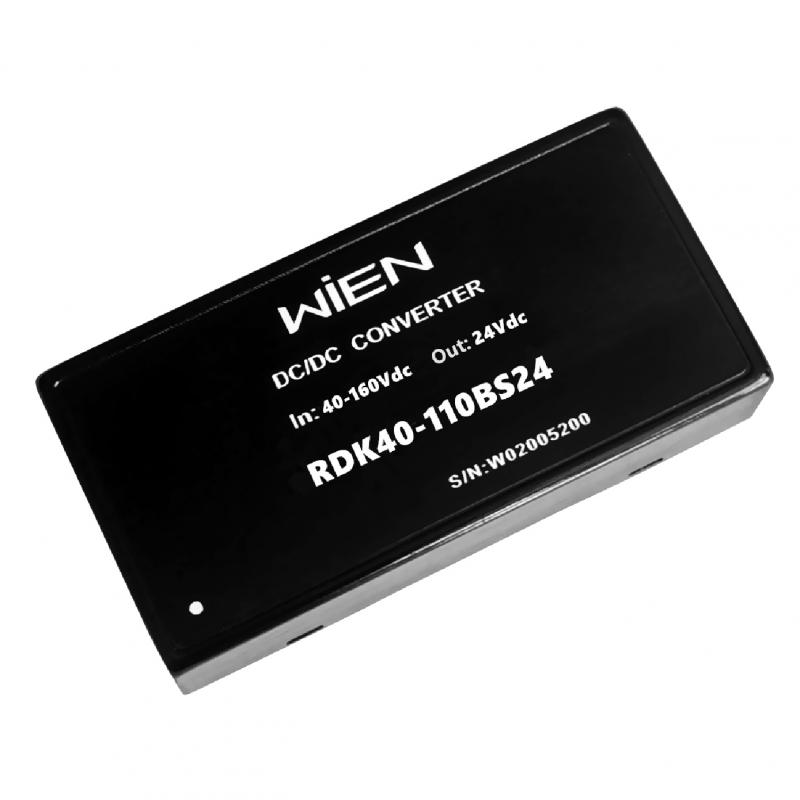

DC-DC Converters RDK40W Series
Product Information:
Model: RDK40-110BS24
1in.×2in.Standard Size
Wide input voltage 40-160Vdc
Input Under Voltage Protection（36 to 40Vdc Turn off）
Positive Logic Control（3.0V to 15V or floating Turn on）
Output Over Voltage Protection（30V to 36V）
Output Voltage Adjust Range: +20%/-10% of the rated output voltage
High Efficiency up to 90%（110V，full load）
3000Vdc I/O Isolation Voltage
Operating Case Temperature :-40℃ to +105℃
110℃ Typ. Over Temperature Protection
Output Short-circuit Protection, hiccup, auto-recovery
Meets requirements of Standard EN50155
Applications:Telecommunication equipments data exchange servers and distributed power ,Industry system ,rail transit and railway etc.
Warranty Period: 5-year
Electrical Specification:
Input characteristic:
Input Voltage Range: 40-160Vdc
Output characteristic:
Output Voltage/Current : 24V/1.67A
Line Regulation: ±0.2% max. Vo
Load Regulation: ±0.5% max. Vo
Ripple and Noise: 200mV ( Max.) @Vin=110Vdc, Io,nom , 20MHz bandwidth, a 1μF ceramic capacitor applied at output
Temperature Coefficient: ±0.02%/℃
General characteristic:
Switching Frequency: 250KHz (typ.)
Efficiency: 90% (typ.)
MTBF: 2×106h @Bellcore TR332,Tc=25℃
Operating Case Temperature: -40℃ to +105℃
Storage Temperature: -55℃ to +125℃
Our Services:
18 years experience of converter industry.
5 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
ROHS Compliance
FAQ:
Q: what can you buy from us?
A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Is it acceptable to print my logo on the product?
A: Yes. based on a certain purchase quantity,we can make OEM logo.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 or 5-year warranty for our products.
Q: What if I cannot find what I need on your products list?
A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
