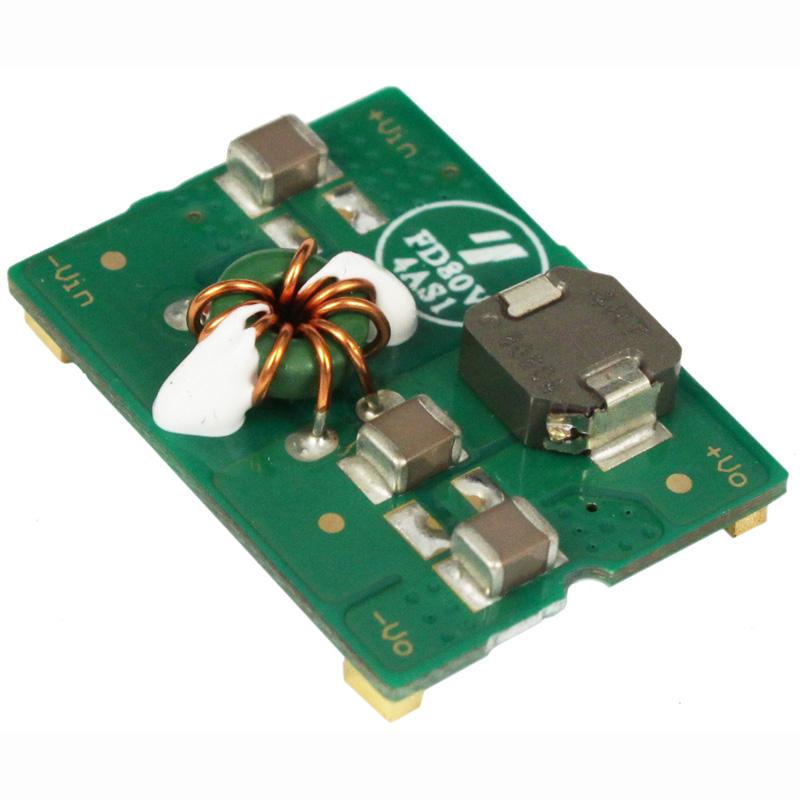

DC-DC EMI Filter FD80V4AS1
Product Information:
Model: FD80V4AS1
RoHS lead free solder and lead solder exempted products are available
Maximum current 4A with no derating
Maximum operating input voltage 80V
Operation over -40 °C to +85 °C ambient temperature range
No airflow required up to 85 °C
100V 100ms transient withstand capability
Differential LC-filter stage
Surface mounted design
Small footprint – only 0.75 sq. in.
Warranty Period: 5-year
Electrical Specification:
General characteristic:
Operating Input Voltage Range: 0-80V (48V typ.)
Operating Current : 4A @ 85 °C ambient, no airflow
Efficiency: 99.4% typical @ Vin = 48V,4A
Operating Ambient Temperature : -40℃ to +85℃
Storage Temperature: -55℃ to +125℃
Our Services:
Free sample requested is available.
15 years experience of converter industry.
5 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
ROHS Compliance
FAQ:
Q: what can you buy from us?
A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,DC filter and transient protector
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Is it acceptable to print my logo on the product?
A: Yes. based on a certain purchase quantity,we can make OEM logo.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 or 5-year warranty for our products.
Q: What if I cannot find what I need on your products list?
A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
