DC-DC Converter RAFS400-110A48

Desiged for input 66V-160V,output 48V/400W DC/DC Converters with full brick size 116.8×61.0×12.7mm and Meets the standard EN50155

  • Item no.:

    RAFS400-110A48
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    black
  • Min order:

    30
  • Product weight:

    145G
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-12 Weeks
  • Product Details

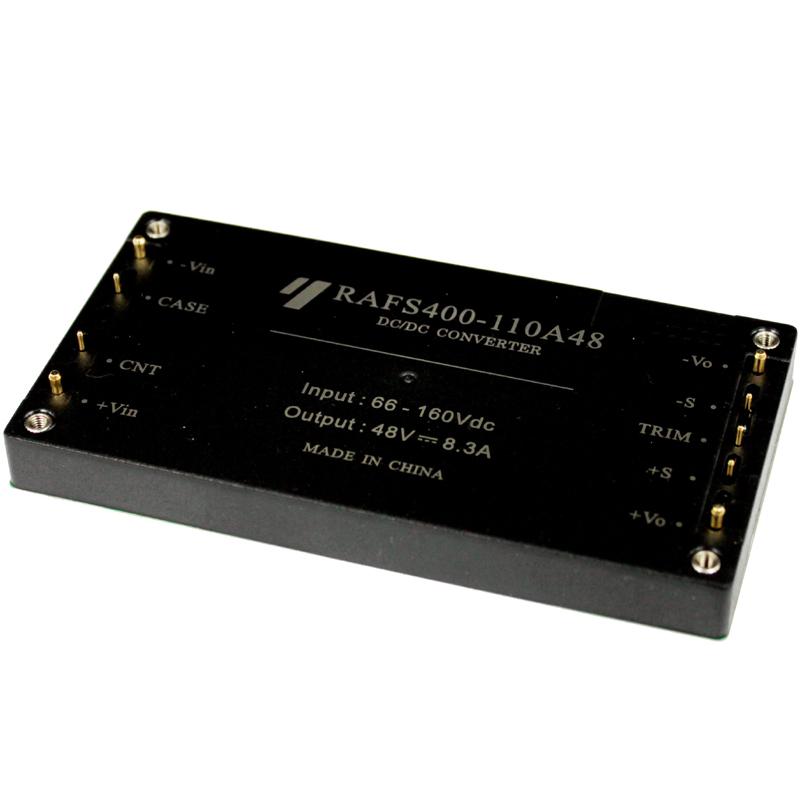

DC-DC Converter RAFS400-110A48


The RAFS400-110A48 DC-DC Converters are widely used in Industry, Railway and Rail transit etc. Quality is guaranteed, welcome to buy!


Product Information:

Model: RAFS400-110A48

Full Brick116.8mm×61.0mm×12.7mm)

Input Under Voltage Protection (55V to 65V turn off

Positive Logic Control (3.5V to 15V turn on)

OVP, OCP, 115 Typ. Over Temperature Protection

Output Short-circuit protection, hiccup,auto-recovery

Typical Efficiency 89%110Vfull load)

1500Vac I/O Isolation

Baseplate Temperature :-40 to 100

Meets requirements of Standard EN50155

Warranty Period: 5-year


Electrical Specification:

Input characteristic:

Input Voltage Range: 66-160Vdc( 110V typ.)


Output characteristic:

Output Voltage/Current : 48V / 8.3A

Line Regulation:   ±0.2% max. Vo

Load Regulation:  ±0.5% max. Vo

Ripple and Noise: 300mV (Max.)

Temperature Coefficient: ±0.02%/℃


General characteristic:

Switching Frequency: 200KHz (typ.)

Efficiency: 89% (typ.)

MTBF: 2×106h @Bellcore TR332,Tc=25℃

Case Temperature:      -40℃ to 100℃

Storage Temperature: -55℃ to 125℃

Shock : Half sine,peak acceleration:300m/s², duration:6 ms ; continuous 6 times of pulse in each of 3 perpendicular directions

Vibration : SineFrequency:10Hz-55Hz,Amplitude:0.35mm,30 min in each of 3 perpendicular directions


Our Services:

13 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,400W Converter DC To DC


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
