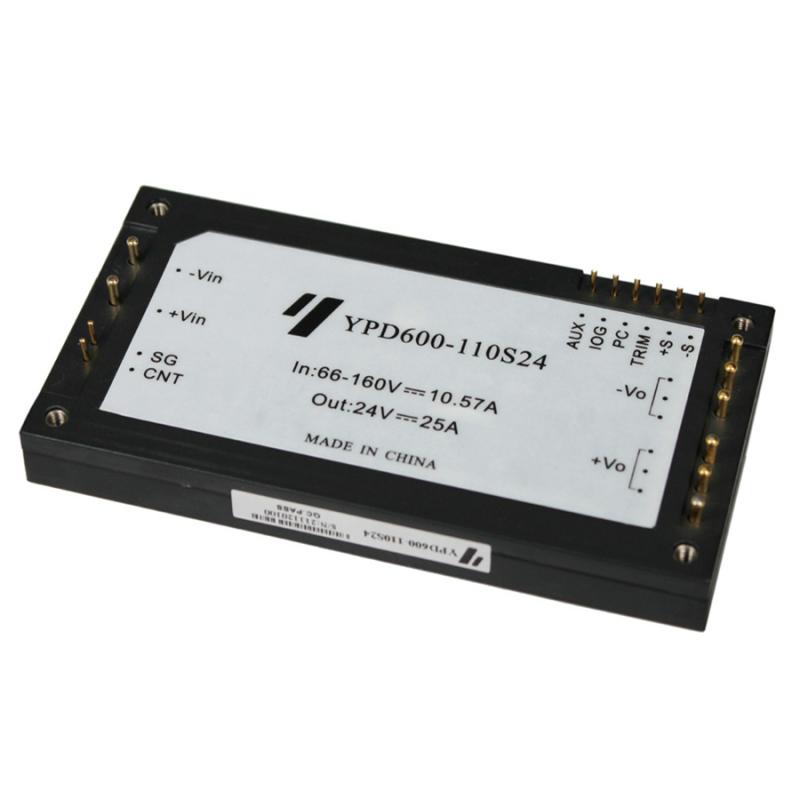

DC-DC Converter YPD600-110S24

Designed as a 600W DC/DC Converter for achieve up to 1200W realised by connecting 2 units in parallel and meets the standard EN50155.

  • Item no.:

    YPD600-110S24
  • Product origin:

    China
  • Color:

    black
  • Min order:

    10
  • Product weight:

    175G
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-12 Weeks
  • Product Details

DC-DC Converter YPD600-110S24


The YPD600-110S24 DC-DC Converter can be connected to increase power in parallel. Besides input pins and output pins are connected in parallel, the PC pins should be connected.Achieve up to 1200W realised by connecting 2 units in parallel.


Product Information:

Model: YPD600-110S24

Full Brick (116.8mm×61.0mm×12.7mm)

Input Under Voltage Protection (55V to 65V turn off

Negative Logic ControlTurn on Between -0.7V to 0.7V

OVP, OCP, 115 Typ. Over Temperature Protection

Output Short-circuit protection, hiccup,auto-recovery

5% Output Current Sharing

High Efficiency up to 90%110V, full load

1500Vac I/O Isolation

Baseplate Temperature :-40 to +100

Meets requirements of Standard EN50155

Warranty Period: 5-year


Electrical Specification:

Input characteristic:

Input Voltage Range: 66-160Vdc (110V typ.)


Output characteristic:

Output Voltage/Current : 24V / 25A

Line Regulation:   ±0.2% max. Vo

Load Regulation:  ±0.5% max. Vo

Ripple and Noise:  240mV (Max.)

Temperature Coefficient: ±0.02%/℃


General characteristic:

Switching Frequency: 250KHz (typ.)

Efficiency: 90% (typ.)

MTBF: 2×106h @Bellcore TR332,Tc=25℃

Case Temperature:      -40℃ to +100℃

Storage Temperature: -55℃ to +125℃

Shock : Half sine,peak acceleration:300m/s², duration:6 ms ; continuous 6 times of pulse in each of 3 perpendicular directions

Vibration : SineFrequency:10Hz-55Hz,Amplitude:0.35mm,30 min in each of 3 perpendicular directions


Our Services:

15 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,600W DC DC Converter


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
