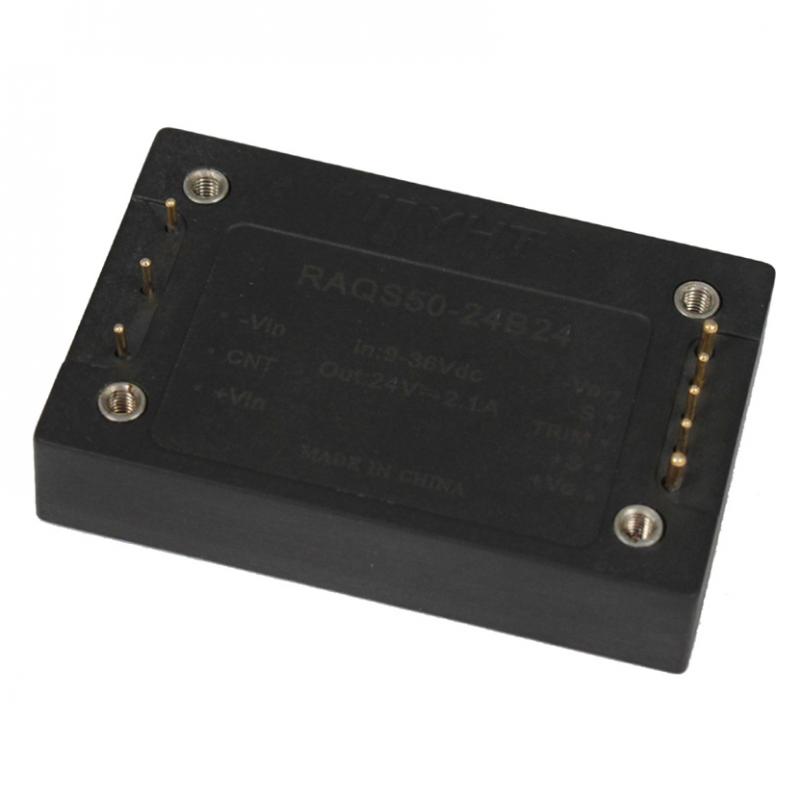

DC-DC Converter RAQS50-24B24

Desiged for wide input 9V-36V, Output 24V/50W DC/DC Converter +Heat Sink ,with features of Quarter brick size and High Efficiency up to 87%.

  • Item no.:

    RAQS50-24B24
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    black
  • Min order:

    50
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-12 Weeks
  • Product Details

DC-DC Converter RAQS50-24B24


Product Information:

ModelRAQS50-24B24

Category: Brick (50W-600W)

Quarter Brick60.6mm×39.01mm×12.7mm

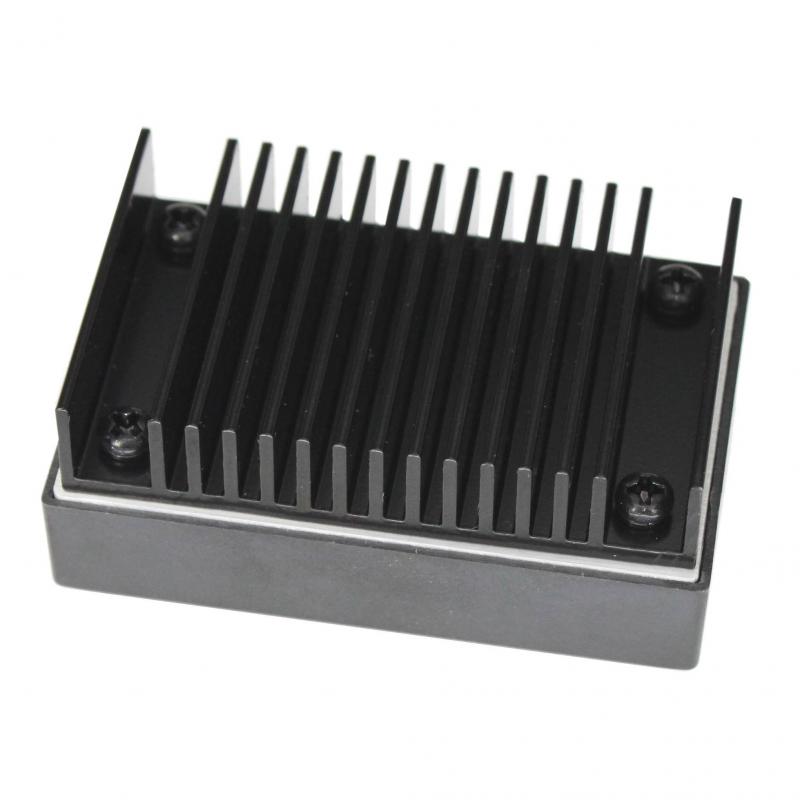

Quarter Brick +Heat sink(60.6mm×39.01mm×24.10mm

Input Under Voltage Protection6.5V to 8.9V Turn off

Positive Logic Control3.5V to 15V Turn on

Output Over Voltage Protection28.8V to 33.6V

Output Voltage Adjust Range: ±10% of the rated output voltage

High Efficiency up to 87%24Vfull load

1500Vac Isolation Voltage

Operating Ambient Temperature   -40 to +85

Operating Baseplate Temperature -40 to +100

115 Typ. Over Temperature Protection Baseplate Temperature

Conforming to the EN50155 Standard Test

Warranty Period: 5-year

Applications: Industry, Railway & Rail transit.


Electrical Specification:

Input characteristic:

Input Voltage Range: 9-36Vdc ( 24Vdc typ.)


Output characteristic:

Output Voltage/Current : 24Vdc /2.1A

Line Regulation:   ±0.2% max. Vo

Load Regulation:  ±0.5% max. Vo

Ripple and Noise: 200mV (Max.) @ 20MHz bandwidth

Temperature Coefficient: ±0.02%/℃


General characteristic:

Switching Frequency: 250KHz (typ.)

Efficiency: 87% (typ.)

MTBF: 2×106h @Bellcore TR332,Tc=25℃

Case Temperature:      -40℃ to +100℃

Storage Temperature: -55℃ to +125℃

Shock And Vibration : Meets  EN50155


EMC Specifications:

EMI Conducted Emission : EN55032 CLASS A

Surge Immunity: IEC/EN61000-4-5    line to line(±1kV/2Ω) CLASS B

Fast Transient :   IEC/EN61000-4-4    ±2kV(5/50ns, 5kHz)  CLASS A


Our Services:

13 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, DC-DC Power Converter,Module Power Supply


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
