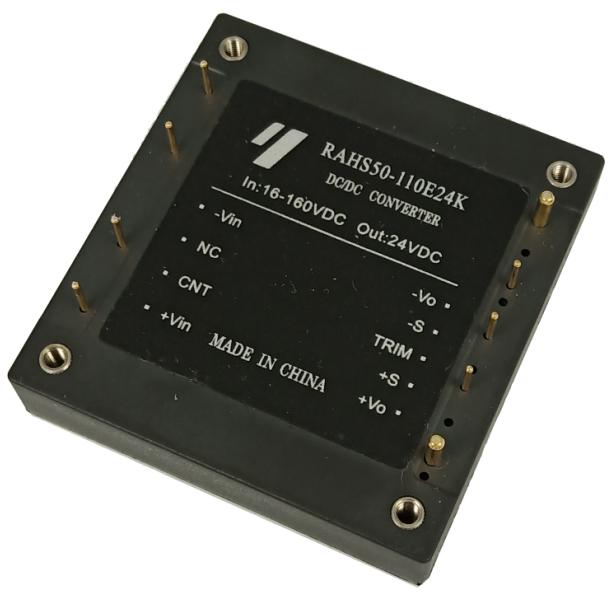

DC-DC Converters RAHS50-110E24K

1:10 Ultra wide input 16V-160V, Output 24V/50W DC-DC Converter ,with features of 3000Vac min. Isolation Voltage and Half brick standard size.

  • Item no.:

    RAHS50-110E24K
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    black
  • Min order:

    20
  • Product weight:

    63G
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-12 Weeks
  • Product Details

DC-DC Converter RAHS50-110E24K


Product Information:

Model: RAHS50-110E24K

Category: Brick (50W-600W)

Half-Brick61.0mm×57.9mm×12.7mm

Positive Logic Control3.5V to 15V or floating turn on

Input Under Voltage Protection12V to 15V turn off

Input Over Voltage Protection180V~190V turn off

Output Over Voltage Protectionclamping30V~34.8V

Output Voltage Adjust Range: ±10 % of the rated output voltage

Output Short-circuit Protection: hiccup, auto-recovery

Efficiency : 88% Typ.110Vfull load

3000Vac Isolation Voltage

Operating Baseplate Temperature:-40to+100

Operating Ambient Temperature: -40to +85

Over Temperature Protection: 120 Typ.

Warranty Period: 5-year

Applications: Industrial, railway & Rail transit application

Conforming to the EN50155 Standard Test


Electrical Specification:

Input characteristic:

Input Voltage Range: 16-160Vdc


Output characteristic:

Output Voltage / Current : 24Vdc / 2.1A

Line Regulation:   ±0.2% max. Vo

Load Regulation:  ±0.5% max. Vo

Ripple and Noise: 200mV (Max.) @ 20MHz bandwidth

Temperature Coefficient: ±0.02%/℃


General characteristic:

Switching Frequency: 200KHz (typ.)

Efficiency: 88% (typ.)

MTBF: 2×106h @Bellcore TR332,Tc=25℃

Operating Baseplate Temperature:-40to+100

Operating Ambient Temperature:  -40to +85

Storage Temperature: -55℃ to +125℃

Shock And Vibration : Meets  EN50155


EMC Specifications:

EMI Conducted Emission : EN55032 CLASS A

Surge Immunity: IEC/EN61000-4-5    line to line(±1kV/2Ω) CLASS B

Fast Transient :   IEC/EN61000-4-4    ±2kV(5/50ns, 5kHz)  CLASS A


Our Services:

14 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, DC-DC Power Converter, Module Power Supply


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
