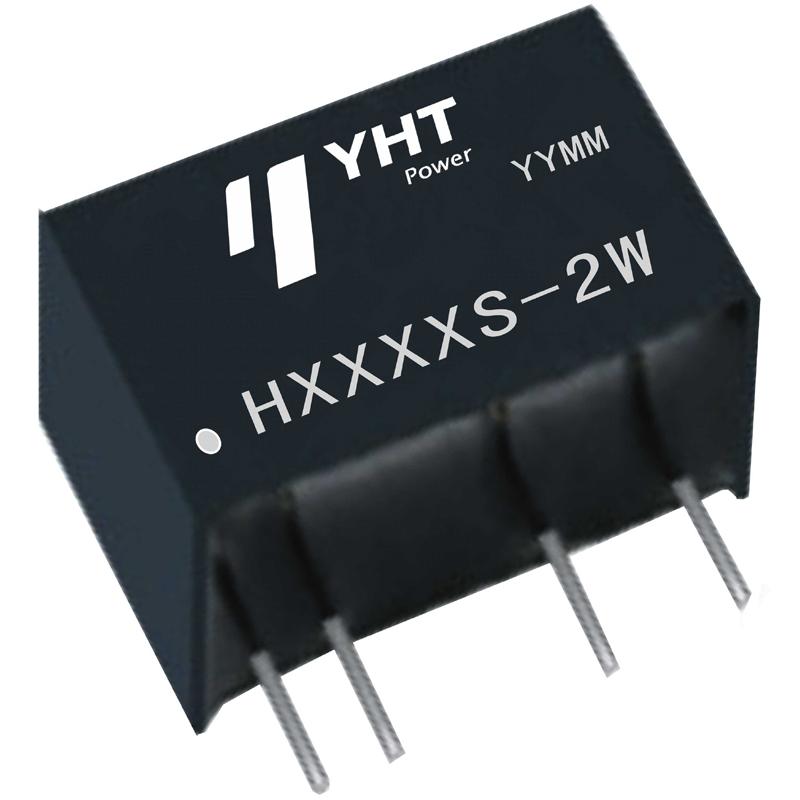

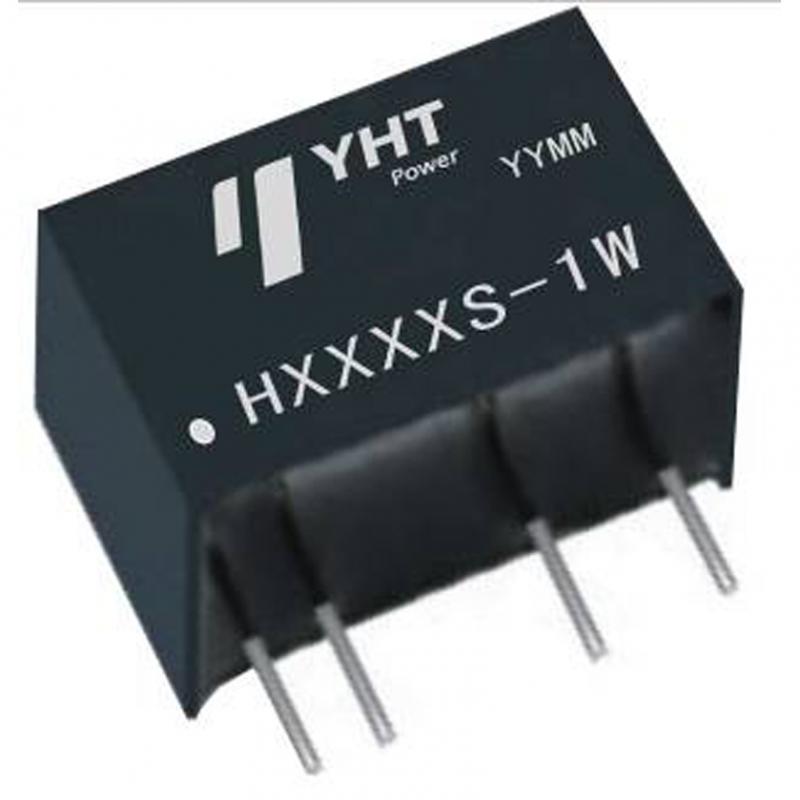

DC/DC Converter H(G)_S-1~2W Series

1W-2W SIP package DC-DC Converter,6000Vdc high isolation unregulated single & dual output design,with feature of built-in soft start technology and Low-Quiescent Current and High Conversion Efficiency

  • Item no.:

    H(G)_S-1~2W Series
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    black
  • Min order:

    100
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-10 Weeks
  • Product Details
DC/DC Converter H(G)_S-1~2W Series


The  H(G)_S-1~2W Series DC-DC Converters are widely used in  Communication,Industrial control,Electricity and IGBT Driver etc. Quality is guaranteed, welcome to buy!


Product Information:

Model:  H(G)_S-1~2W Series

Package : 19.50mm×9.80mm×12.50mm

SIP International Standard Pin

Low-Quiescent Current and High Conversion Efficiency

Low Ripple Coefficient and Low Noise

Built-in Soft-Start Technology

6000Vdc Isolation Voltage

Operation Temperature:-40 to 85

100% burn-in and screening

Special specifications of products can be designed according to customers requirements

Warranty Period: 2-year


Electrical Specification:

Input characteristic:

Input Voltage Range: see tables - technical datasheets


Output characteristic:

Output Voltage/Current : see tables - technical datasheets

Ripple and Noise: 100mV(typ.)

Temperature Coefficient: ±0.03%/℃

Output short-circuit protection: sustainable,automatic recovery


General characteristic:

Switching Frequency: 50KHz (typ.)

Efficiency: see tables - technical datasheets

MTBF: 3.5×106h @Bellcore TR332,Tc=25℃

OperatingTemperature:      -40℃ to +85℃

Storage Temperature:         -55℃ to +105℃


Our Services:

13 years experience of converter industry.

2 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,DC DC Converter Fixed input


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
