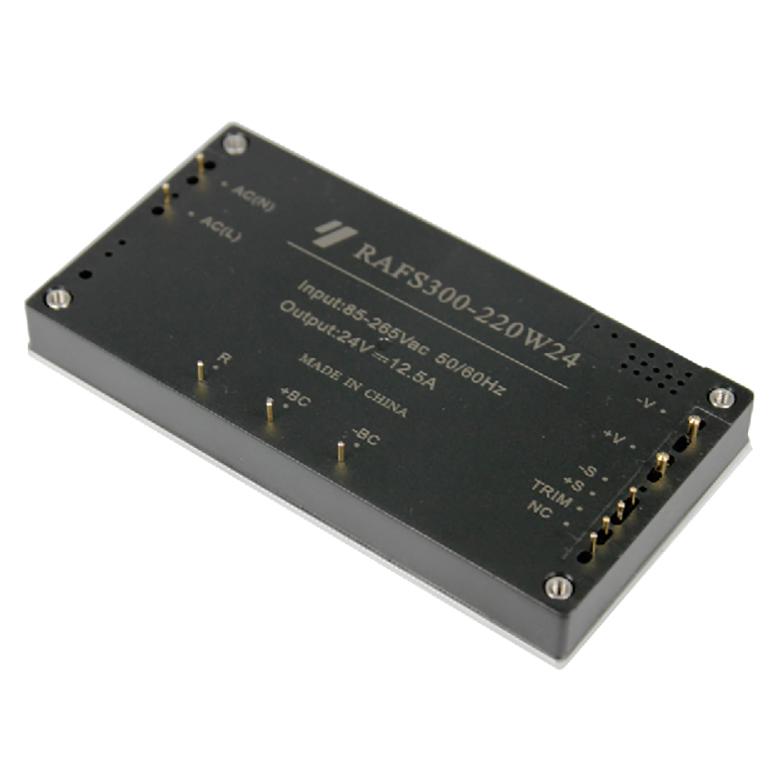

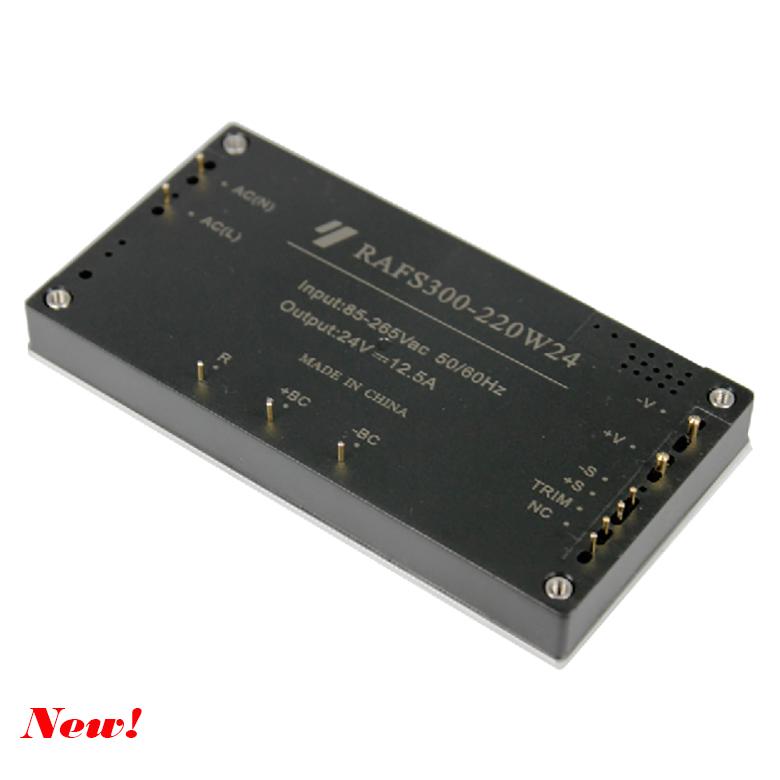

AC-DC Power Supply Module RAFS300-220W24

Designed for 300W Full Brick ,24V output AC-DC Power Supply Module with Active PFC and 90% High efficiency
  • Item no.:

    RAFS300-220W24
  • Product origin:

    China
  • Color:

    black
  • Min order:

    20
  • Product weight:

    200G
  • Shipping port:

    FOB Beijing
  • Lead Time:

    6-8 Weeks
  • Product Details

AC-DC Power Module RAFS300-220W24


Product Information:

Model: RAFS300-220W24

Full Brick116.8mm×61.0mm×12.7mm

Output Voltage Adjust Range±10 % of the rated output voltage

Output Short-circuit Protection, hiccup, auto-recovery

High Power Factor,High Efficiency,High Stable Voltage Accuracy

High efficiency,90% typ.230Vac,Full Load

3000Vac I/O Isolation Voltage

Operating Baseplate Temperature : -40 to +100

OVP,OCP,Over Temperature Protection(OTP): 110typ.

100% burn in

2-year warranty

Applications: Industrial Electronics & Equipment and Railway & rail transit


Electrical Specification:

Input characteristic:

Input Voltage Range: 85-265Vac ( 230Vac Typ. )


Output characteristic:

Output Voltage/Current : 24Vdc/12.5A

Line Regulation:   ±0.2% Max

Load Regulation: ±0.5% Max

Ripple and Noise:  280mV Max @20MHz bandwidth


General characteristic:

Isolation Voltage: 3000Vac Min. @Input to output

Switching Frequency: 210KHz typ.

Efficiency: 90% typical @ Vin=230Vac,Io,nom

MTBF: 2×106h @Bellcore TR332,Tc=25℃

Operating Baseplate Temperature: -40℃ to +100℃

Storage Temperature:                         -55℃ to +125℃


Our Services:

17 years experience of converter industry.

2 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Certificate or Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter, Module Power Supply


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
 YAS 2.5W AC/DC Converter
AC/DC Converter YAS2.5W Series
2.5W SIP AC/DC Converters with features of high reliability,most economical and effective selection function.
YAS5W Series AC DC Converter
AC DC Converter YAS5W Series
5W AC DC converter universal input 85-265 Vac, with 2500 Vac isolation voltage and low cost selection
 YAS 3W AC-DC Converters
AC-DC Converters YAS3W Series
3W AC/DC Converters Universal Input Voltage with features of 2500Vac Isolation Voltage
YBS5W Series AC/DC Converters
AC/DC Power Modules YBS5W Series
Designed for 5W small size AC/DC Power Modules with features of Wide Input Range 85Vac to 305Vac and 4000Vac Isolation Voltage.
YBS10W Series AC/DC Converters
AC/DC Power Modules YBS10W Series
Designed for 10W AC/DC Power Modules with features of Miniaturization size 53.8×28.8×19.0mm and 4000Vac I/O Isolation Voltage.
YBS20W Series AC-DC Converters
AC-DC Power Modules YBS20W Series
Designed for 20W AC/DC Power Modules with features of low standby loss and 3000Vac I/O Isolation Voltage.

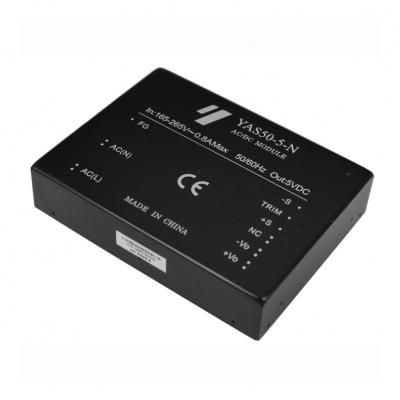

YAS50-5-N AC-DC Converters
AC-DC Converters YAS50-5-N
Designed for AC/DC Converters delivers up to 50 watts,trim functions and CE certification.

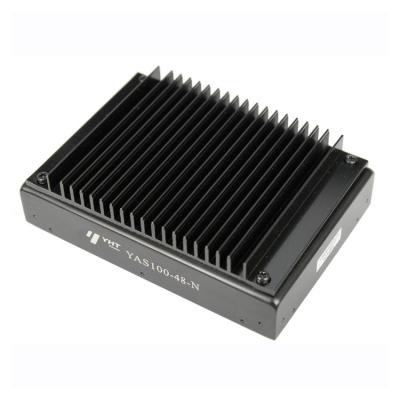

YAS100-48-N AC- DC Converter
