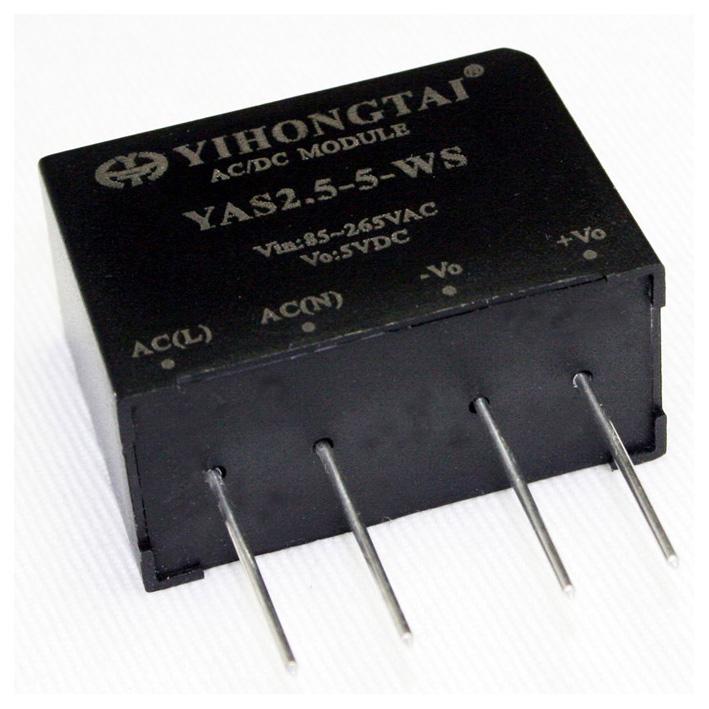

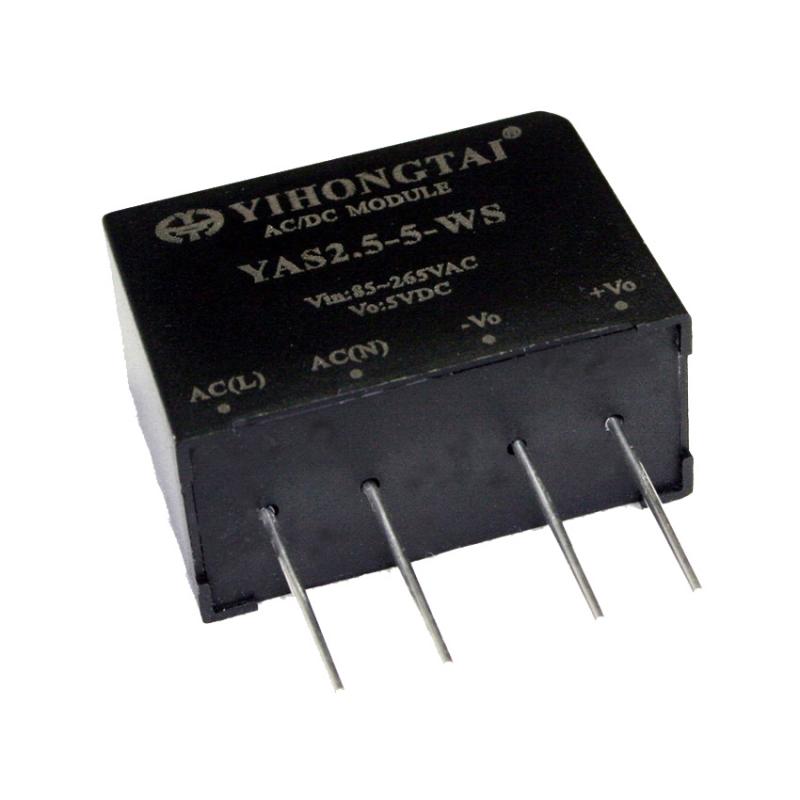

AC/DC Converter YAS2.5W Series

2.5W SIP AC/DC Converters with features of high reliability,most economical and effective selection function.
  • Item no.:

    YAS2.5W Series
  • Product origin:

    China
  • Color:

    black
  • Min order:

    100
  • Product weight:

    30G
  • Shipping port:

    FOB Beijing
  • Lead Time:

    6-8 Weeks
  • Product Details

AC/DC Converter YAS2.5W Series


The YAS2.5W series AC/DC Converters are widely applicable to Telecom / Datacom, Industry electronics /control system and Power Electricity etc..


Product Information:

Model: YAS2.5W Series

Industry Size(37.0 mm×26.5 mm×18.0mm)
Universal Input Voltage 85Vac to 265Vac
2500Vac Isolation Voltage
60kHz Switching Frequency
Short Circuit Protection , Auto Recovery
100% Burn-in
2-year warranty


Electrical Specification:

Input characteristic:

Universal Input Voltage : 85Vac to 265Vac


Output characteristic:

Line Regulation:  ±0.2% Max

Load Regulation: ±0.5% Max

Ripple and Noise:  150mVp-p  Co=100μF @Measured by 20MHz

Temperature Coefficient:  ±0.2% per℃(Max)

Short-Circuit Protection: Continuous, Automatic Recovery


General characteristic:

Switching Frequency: 45-60KHz

Efficiency: 72% typical

MTBF: 3×105h @Bellcore TR332,Tc=25℃

Case Temperature:     -10℃ to +70℃(Commercial) ; -25℃ to +85℃(Industry)

Storage Temperature: -40 to +105


Our Services:

Free sample requested is available.

15 years experience of converter industry.

2 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Certificate or Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
