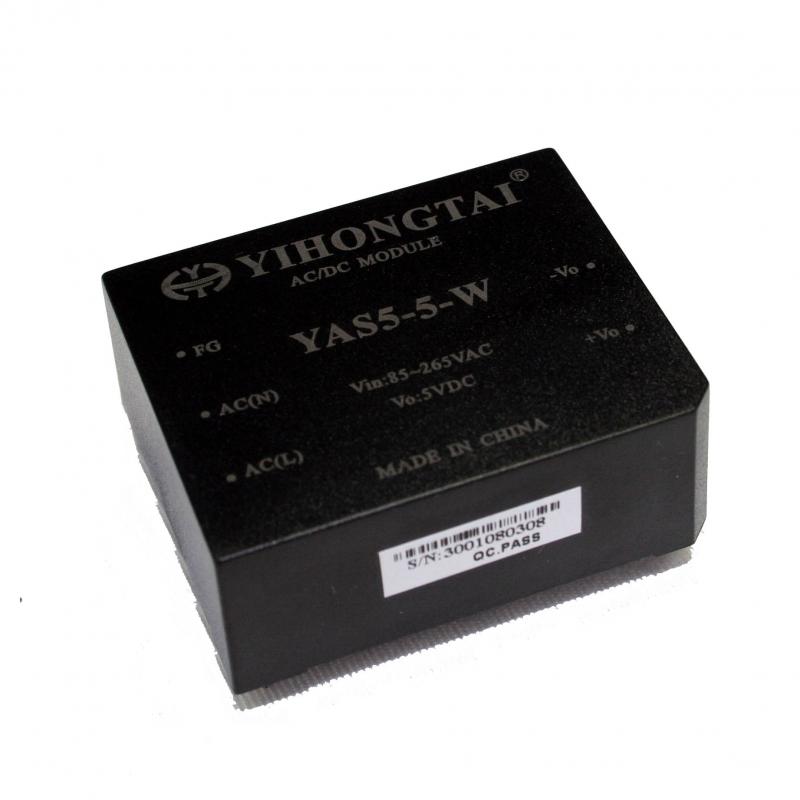

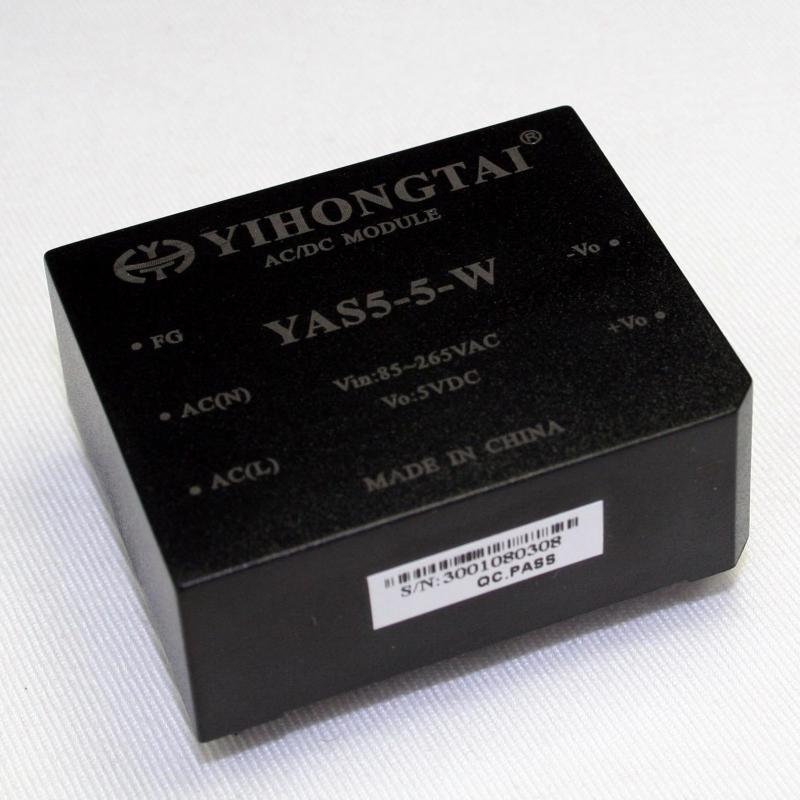

AC DC Converter YAS5W Series

5W AC DC converter universal input 85-265 Vac, with 2500 Vac isolation voltage and low cost selection
  • Item no.:

    YAS5W Series
  • Product origin:

  • Color:

  • Min order:

  • Product weight:

  • Shipping port:

    FOB Beijing
  • Lead Time:

    6-8 Weeks
  • Product Details

AC DC Converter YAS5W Series

The YAS5W series AC/DC converters are widely applicable to Communications, Industry,Power Electricity.

Product Information:

Model: YAS5W Series

Industry Size(55mm×45mm×21mm)
Universal Input Voltage
Delivers up to 5 watts;

2500Vac isolation voltage;

Output Short-Circuit, auto-recovery;

2-years warranty;

Electrical Specification:

Input characteristic:

Universal Input Voltage : 85Vac to 265Vac

Output characteristic:

Line Regulation:  ±0.2% Max

Load Regulation: ±0.5% Max

Ripple and Noise:  50mV @Measured by 20MHz

Temperature Coefficient:  ±0.1% per℃(Max)

Output Short-Circuit Protection: Continuous, Automatic Recovery

General characteristic:

Isolation Voltage: 2500Vac @Input-Output

Switching Frequency: 60KHz

Efficiency: 76% typical

MTBF: 3×105h @Bellcore TR332,Tc=25℃

Case Temperature:       -10℃ to +70℃(Commercial)

Storage Temperature:  -40 to +105

Our Services:

Free sample requested is available.

15 years experience of converter industry.

2 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Certificate or Compliance


Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,Adjustable AC DC Converter

Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.

Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.

Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
