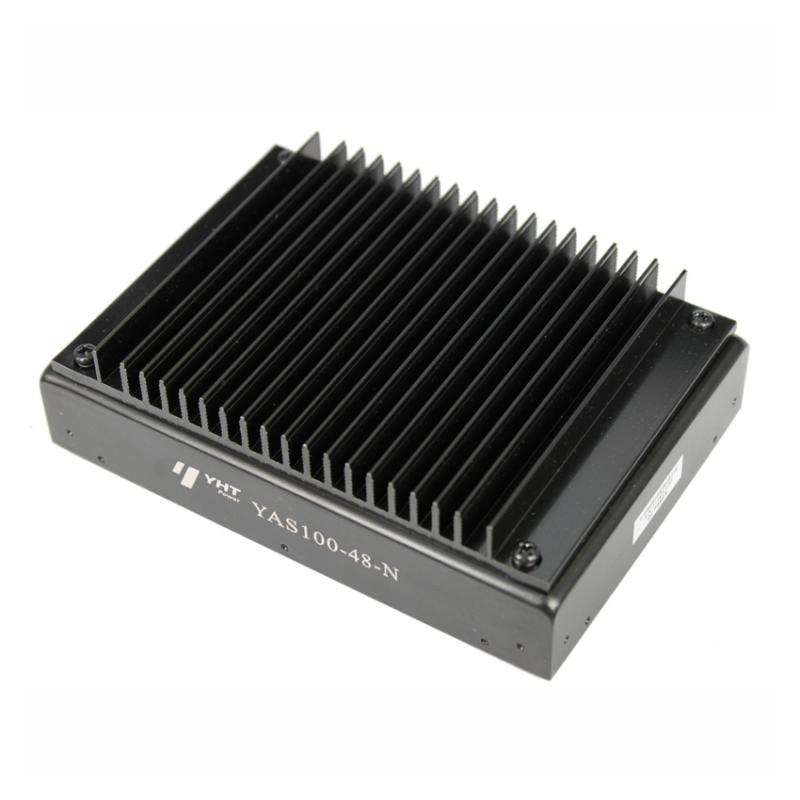

AC-DC Converter YAS100-48-N

Designed for 100W Encapsulated Aluminum case AC/DC Converter plus radiator ,with 48V output and 3×105h MTBF.
  • Item no.:

    YAS100-48-N
  • Product origin:

    China
  • Color:

    black
  • Min order:

    50
  • Product weight:

    520G
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-10 Weeks
  • Product Details

AC-DC Converter YAS100-48-N


Product Information:

Model: YAS100-48-N

Industry Size 127.0mm×88.9mm×23.0mm (+12.5mm heat- sink height)

Universal Input Range 165Vac to 265Vac

1500Vac Isolation Voltageinput to output

125kHz Switching Frequency

Output Short Circuit Protection , Auto Recovery

Operating Case Temperature: -25 to 85

100% Burn-in

2-year warranty


Electrical Specification:

Input characteristic:

Input Voltage Range: 165 -265Vac

Input Voltage Frequency: 45 -65Hz


Output characteristic:

Output Voltage/Current : 48Vdc / 2.08A

Line Regulation:   ±0.2% Max

Load Regulation: ±0.5% Max

Ripple and Noise:  200mV Max @Measured by 20MHz

Temperature Coefficient:  ±0.1% per℃(Max)

Short-Circuit Protection: Continuous, Automatic Recovery


General characteristic:

Isolation Voltage: 1500Vac Min. @Input-Output, Leak Current:5mA, Time:60S

Switching Frequency: 125KHz typ.

Efficiency: 88% typical @ Input Voltage 220Vac

MTBF: 3×105h @Bellcore TR332,Tc=25℃

Case Temperature:       -25℃ to +85℃

Storage Temperature:  -40 to +105


Our Services:

15 years experience of converter industry.

2 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Certificate or Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter, Module Power Supply


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
