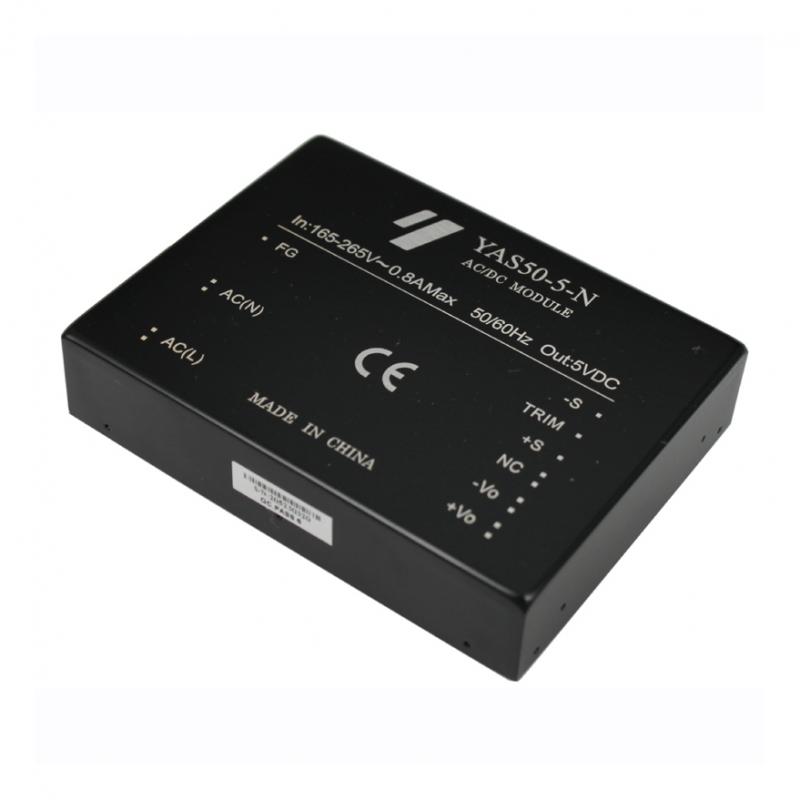

AC-DC Converters YAS50-5-N

Designed for AC/DC Converters delivers up to 50 watts,trim functions and CE certification.
  • Item no.:

    YAS50-5-N
  • Product origin:

    China
  • Color:

    black
  • Min order:

    50
  • Product weight:

    280G
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-10 weeks
  • Product Details

AC-DC Converter YAS50-5-N


Product Information:

Model: YAS50-5-N

Industry Size(101.6mm×76.2mm×22.0mm)

Delivers up to 50 watts;

Trim Functions;

1500Vac isolation voltage;

Output Short-Circuit, auto-recovery;

Case Temperature: -25~+85

2-years warranty.

CE Cetification


Electrical Specification:

Input characteristic:

Input Voltage Range: 165 -265Vac

Input Voltage Frequency: 45 -65Hz


Output characteristic:

Output Voltage/Current : 5Vdc /10A

Line Regulation:  ±0.2% Max

Load Regulation: ±0.5% Max

Ripple and Noise:  50mV @Measured by 20MHz

Temperature Coefficient:  ±0.1% per℃(Max)

Short-Circuit Protection: Continuous, Automatic Recovery


General characteristic:

Isolation Voltage: 1500Vac Min. @Input-Output

Switching Frequency: 65KHz

Efficiency: 80% typical @ Input Voltage 310Vdc

MTBF: 3×105h @Bellcore TR332,Tc=25℃

Case Temperature:  -25℃ to +85℃

Storage Temperature:  -40 to +105


Our Services:

15 years experience of converter industry.

2 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

CE,ROHS,EMC Certificate or Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter, Module Power Supply


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
