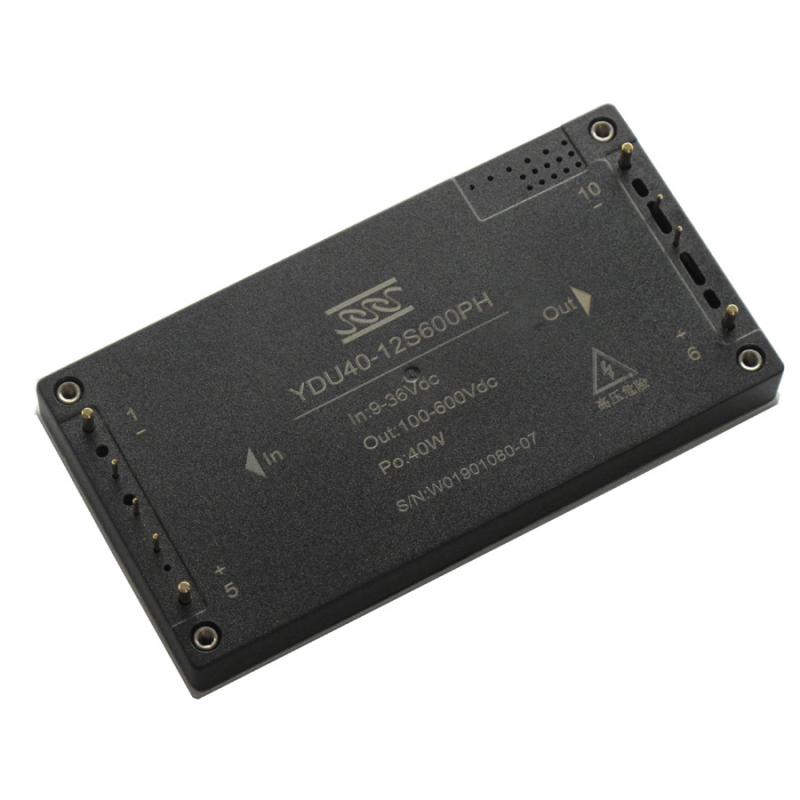

DC-DC Converters YDU40W Series

Input 9V-36V, Output Voltage 100-1000V, 40W DC-DC Converter Full Brick Series ,can be widely used in Apparatuses, Ultrasonic flaw detection,X-ray detection ,Railway flaw detection Equipments.

  • Item no.:

    YDU40W Series
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    black
  • Min order:

    5
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-12 Weeks
  • Product Details

DC-DC Converters YDU40W Series


Designed for Output Voltage Adjust Range 100-600V/1000V ,with High Efficiency up to 80%(full load)and speical applications in Instruments and Apparatuses, Ultrasonic flaw detection, X-ray detection,Railway flaw detection Equipments and Railway & Rail transit power


Product Information:

Model: YDU40W Series

Full Brick116.8mm×61.0mm×12.7mm

Isolation Voltage: 1500Vdc/1min/5mA (Input-Output)

Operating Case Temp: -40 to +105(Industry)

Warranty Period: 5-year

Lead time (new prodcution): 8-12 Weeks


Electrical Specification:

Input characteristic:

Input Voltage Range: 9-36Vdc


Output characteristic:

Output Voltage Range: 100-600Vdc, 100-1000Vdc

Line Regulation: ±0.2% Max

Load Regulation: ±0.5% Max

Ripple and Noise: 1%Vo

Temperature Coefficient: ±0.02% per℃(Max)

Short-Circuit Protection: Continuous, Automatic Recovery


General characteristic:

Switching Frequency: 300kHz(typ.)

Efficiency: 82% typical

MTBF: 2×106h @Bellcore TR332,Tc=25℃

Case Temperature: -40℃ to +105℃(Industry)

Storage Temperature: -55℃ to +125℃


Our Services:

15 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS,EMC Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,High voltage DC/DC Converter


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
