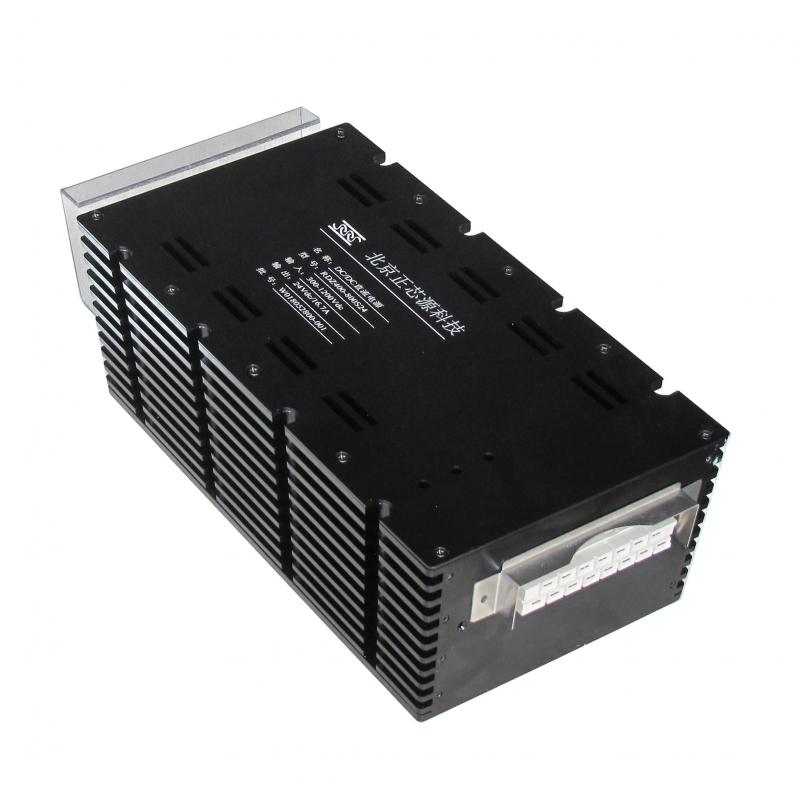

DC-DC Converters RDZ300W Series

Wide Input 500-1000V,300W Output,with 4800Vdc I/O Isolation Voltage and special applications in Industrial control and Railway & Rail transit Power

  • Item no.:

    RDZ300-750S24
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    black
  • Min order:

    5
  • Product weight:

    3KG
  • Shipping port:

    FOB Beijing
  • Lead Time:

    6-8 Weeks
  • Product Details

DC-DC Converters RDZ300W Series


Product Information:

Model:RDZ300-750S24

Dimension (218mmx205mmx90mm)

Wide Input Voltage Range5001000Vdc,Single Output

Input Under Voltage Protection, Input Over Voltage Protection

Output Over Voltage ProtectionSingle Automatic Recovery, Multiple Locks,Output Over

Current Protection

Output Short-circuit Protection, Automatic Recovery

4800Vdc Min. Isolation Voltage

Operation Ambient Temperature -40 to +85

Wet Weight : 3KG

Applications: Industry control, Railway & Rail transit etc.


Electrical Specification:

Input characteristic:

Input Voltage Range: 500-1000Vdc (typical 750Vdc)


Output characteristic:

Output Voltage Range: 24Vdc

Line Regulation:  ±3% Max

Load Regulation: ±3% Max

Ripple and Noise: 200mV Max.@Vin=750V, Io,nom , 20MHz bandwidth, a 10μF Tantalum capacitor and a 1μF ceramic capacitor

Temperature Coefficient: 0.02% per℃(Max)


General characteristic:

Efficiency: 80% Min.

MTBF: 2×105h @Bellcore TR332,Tc=25℃

Operating Ambient Temperature: -40℃ to +85℃

Storage Temperature: -55℃ to +85℃


Our Services:

17 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS,EMC Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,DC DC Voltage Converter


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
