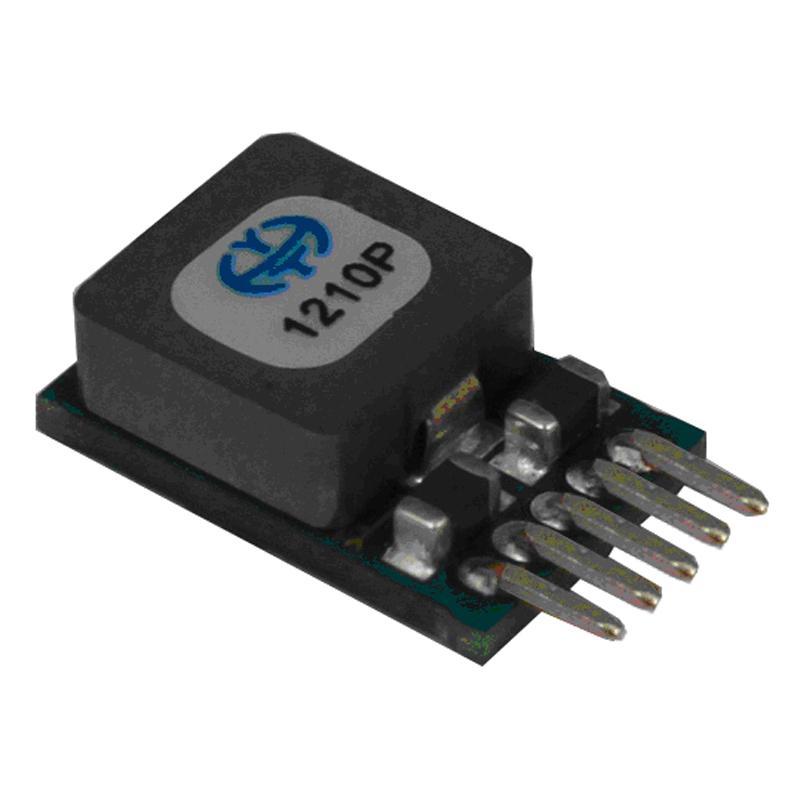

Non-Isolated DC DC Converter NTB1210 Series

Designed for Input 4.5V-14V, Output 0.59V-5.1V/10A Non-isolated DC-DC Converters, with features of 95% high efficiency and Single-in-line Package.

  • Item no.:

    NTB1210P
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    Green
  • Min order:

    100
  • Product weight:

    4G
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-10 Weeks
  • Product Details

NTB1210 Series


The NTB1210 Series Non-isolated DC/DC Converters are widely used in Telecommunication equipments, data exchange servers and distributed power architectures. Quality is guaranteed, welcome to buy!


Product Information:

Model: NTB1210P

Package 10.4mm×16.5mm×10.2mm

Remote On/Off (positive logic)

Output Voltage Range :0.59V to 5.1V

High Efficiency, 95% typeInput: 12.0Voutput:5.0V

Output Over Temperature Protection

Output Short-circuit Protection

Operating Temperature: -40 to 85

Max Load Current: 10A

Warranty Period: 5-year


Electrical Specification:

Input characteristic:

Input Voltage Range: 4.5-14.0Vdc


Output characteristic:

Output Voltage:  0.59V-5.1V

Output Current : 10A

Line Regulation:  ±0.5%VO @Vo2.5VIO=10A

Load Regulation: ±0.5%VO @Vin=12VVo2.5V

Current Limit Inception: IO,lim =12A @Vin=12V
Ripple and Noise: 50mV @Measured by 20MHz

Short-Circuit Protection: Continuous, Automatic Recovery


General characteristic:

Switching Frequency: 600KHz

Efficiency: 95% typical @Vin=12V,10A,Vo=5.0V

MTBF: 5×106h @Bellcore TR332,Tc=25℃

Temperature Coefficient: ±0.02%/

Over Temperature Protection Reference Point : 95 -125 (105 Typ.)

Case Temperature:     -45℃ to +85℃

Storage Temperature: -55℃ to +125℃


Our Services:

Free sample requested is available.

13 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,DC/DC Power Module,Isolated DC/DC Converter,non isolated dc to dc converter


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
