Non-Isolated DC/DC Converter SIP,SMT Series

Output current up to 40A,high efficiency up to 97% and DOSA Compatible Non-isolated DC-DC Converters with TUV Certification.

  • Item no.:

    SIP,SMT Series 6-40A
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    Green
  • Min order:

    100
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-10 Weeks
  • Product Details

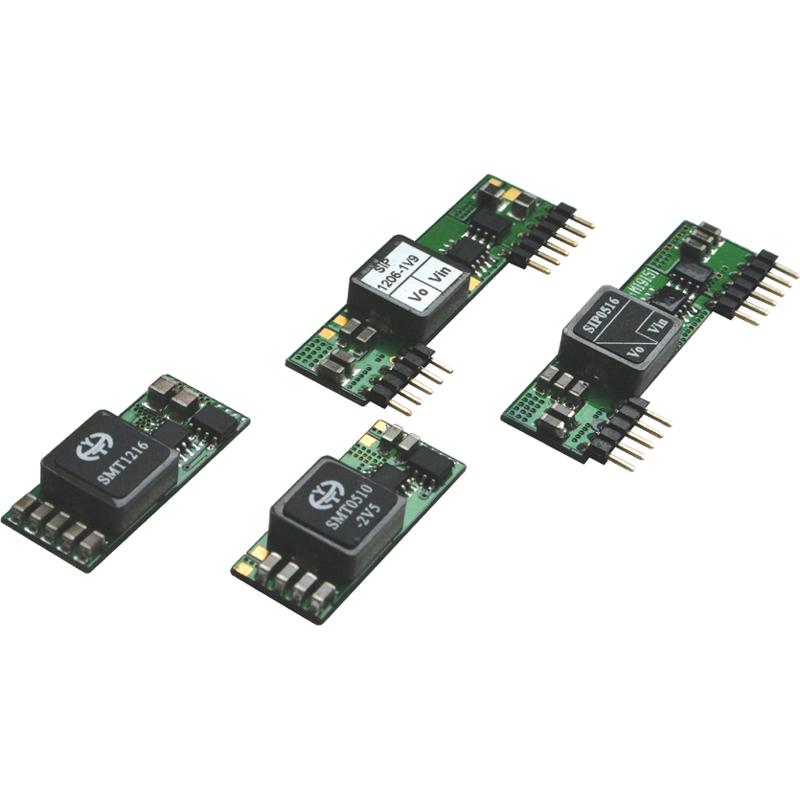

SIP,SMT Series 6A-40A


The SIP,SMT Series Non-isolated DC/DC Converters are widely used in Telecommunication equipments, data exchange servers and distributed power architectures. Have obtained TUV certificate, quality is guaranteed, welcome to buy!


Product Information:

Model: SIP,SMT Series 6A-40A

Industrial Standard Size : SIP package 50.8mm×12.7mm×7.6mm

                                         SMT package 33.0mm×13.5mm×8.3mm

Remote On/Off (Positive logic)

High Efficiency: 92% typ.Input: 12Voutput:5.0V

Over Temperature Protection(OTP)

Operating Temperature: -40 to 85

Max Load Current: up to 40A

Output Voltage Remote Compensation

Warranty Period: 5-year


Electrical Specification:

Input characteristic:

Input Voltage Range: 3-5.5Vdc, 9.6-14Vdc


Output characteristic:

OUtput Current : 6A-40A

Line Regulation: ±0.5%

Load Regulation: ±0.5%

Ripple and Noise: 50mV Max @Measured by 20MHz

Short-Circuit Protection: Continuous, Automatic Recovery


General characteristic:

Switching Frequency: 300KHz

Efficiency: 91% typical(SIP1216), 90% typical(SMT1216)

MTBF: 5×106h @Bellcore TR332,Tc=25℃

Temperature Coefficient: ±0.02%/

OTP Set Point : 100-125

Case Temperature: -45℃ to 85℃

Storage Temperature: -55℃ to 125℃


Our Services:

Free sample requested is available.

13 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

TUV,ROHS,EMC Certificate or Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,DC/DC Power Module,Isolated DC/DC Converter,Non-Isolated DC/DC Converter Module


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
