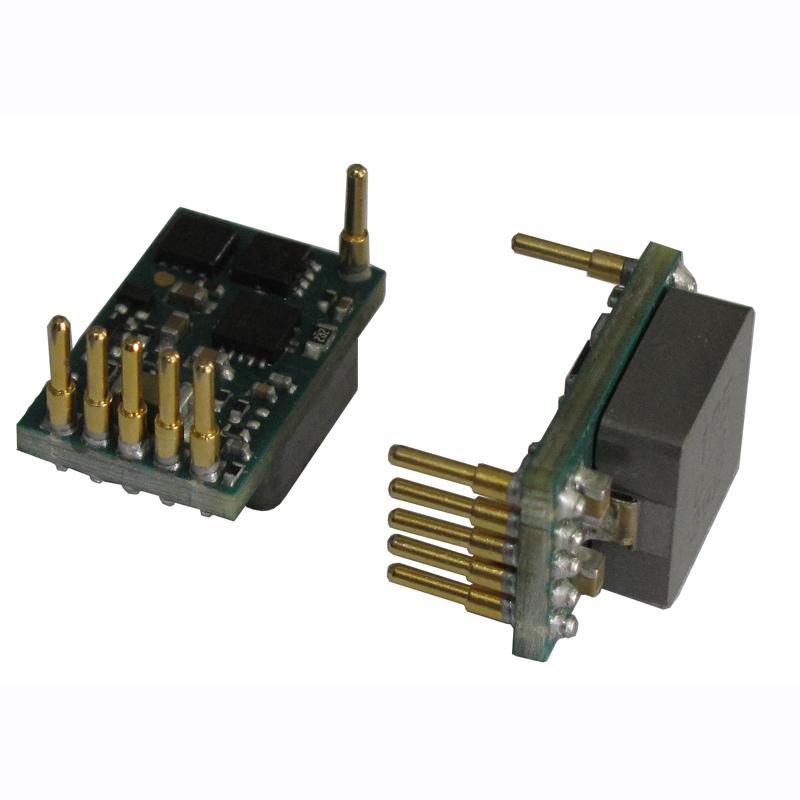

Non-Isolated DC/DC Converter ZBK10-12BST

Designed for 3.3V-14V Input, 0.59V-5.1V/10A Output Non-isolated DC/DC Converters, with features of 93.5% high efficiency and Compact package 16.6mm×10.5mm×8.0mm.


  • Item no.:

    ZBK10-12BST
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    Green
  • Min order:

    100
  • Product weight:

    4G
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-12 Weeks
  • Product Details

ZBK10-12BST


The ZBK10-12BST Non-isolated DC/DC Converters are widely used in Telecommunications, Electronic Data Processing, Distributed Power Architecture and Industry control


Product Information:

Model: ZBK10-12BST

Compact Package 16.6mm×10.5mm×8.0mm

Remote enable controlhigh level or float on

Wide input range: 3.3-14V

Output adjustment (trim)0.59V-5.1V

High efficiency: 93.5% (12V input,5V output)

Ambient temperature : -40~+85

Output Current 10A

Output Over Current Protection

Output Short-circuit Protection

Warranty Period: 5-year


Electrical Specification:

Input characteristic:

Input Voltage Range: 3.3V-14V

Under Voltage Threshold: 1.6-2.8V


Output characteristic:

Output Voltage: 0.59V-5.1V

Output Current : 10A

Line Regulation:  ±0.5%VO

Load Regulation: ±1%VO

Ripple and Noise: 30mV (typ.), 100mV Max. @Measured by 20MHz

Output Over Current Protection :IO,lim =12A min. @ Vin=12V, Vo≥1.8V

Output Short-Circuit Protection: Hiccup mode, automatic recovery, Vo≥1.8V


General characteristic:

Switching Frequency: 600KHz

Efficiency: 95% (typ.) @ Vin=12V, 10A, Vo=5.0V

MTBF: 5×106h @Bellcore TR332,Tc=25℃

Temperature Coefficient: ±0.02%/

Case Temperature:       -40℃ to +85℃

Storage Temperature:  -55℃ to +125℃


Our Services:

13 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,DC/DC Power Module,Isolated DC/DC Converter,non isolated dc converter


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
