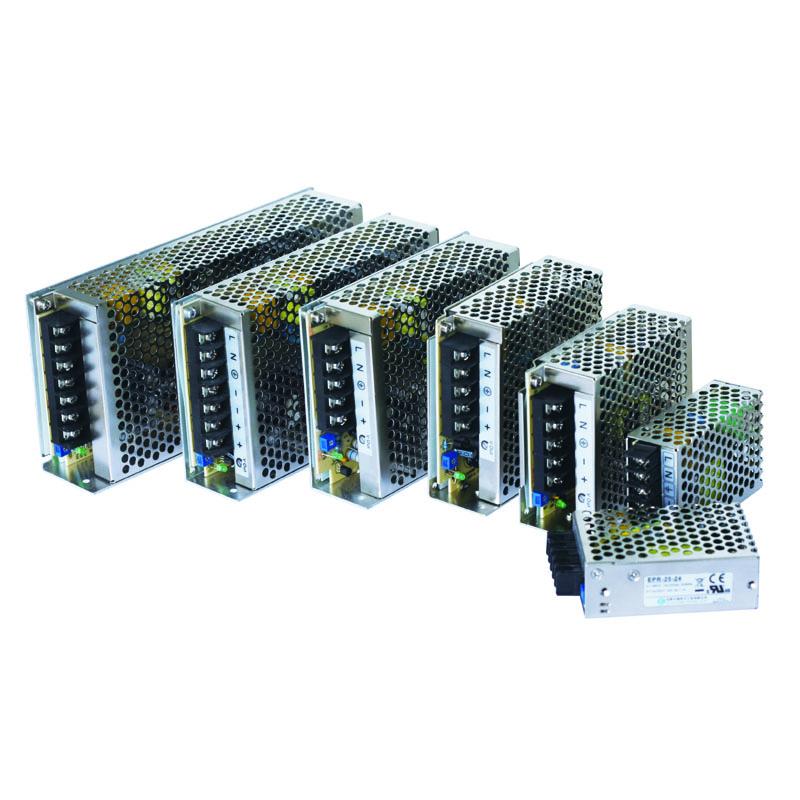

Ultrathin Enclosed Power Supply 35W-350W

30mm Untrathin Enclosed AC DC Power Supply,low standby power consuption,with features of high efficiency, most cost effective options available and CE Certificate.

  • Item no.:

    ESA35-350W
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    Metal
  • Min order:

    50-100
  • Product weight:

    0.2-1.0KG
  • Shipping port:

    FOB Shanghai
  • Lead Time:

    8-10 Weeks
  • Product Details

Ultrathin Enclosed Power Supply 35W-350W


The Ultra-thin Enclosed Switching Power Supply are widely used in industrial automation ,security and monitoring, textile machinery and other industries. Have obtained CE certificate, quality is guaranteed, welcome to buy!


Product Information:

Model: ESA35-350W

Ultra-thin ,30mm height

No load power consumption0.3W,meet requirements of Energy Star 5.0

Operating altitude up to 5km

5G Vibration

Protection: Overload/Overvoltage/Short circuit

Warranty Period: 2-year

Applications: Industrial automation ,security and monitoring, textile machinery and other industries


Electrical Specification:

Input characteristic:

Universal AC input range: 88-264Vac

Input frequency: 47- 63Hz

Inrush current: 35A-50A max @230Vac

                            20A @110Vac,full load cold start

Hold-up time : >16ms @230Vac full load


Output characteristic:

Load Regulation: ±0.5% - ±1%

Ripple and Noise: 200mV Max @Measured by 20MHz

Protection: Overload/Overvoltage/Short-Circuit


General characteristic:

Efficiency: 89% typical

MTBF: 3×105h @Bellcore TR332,Tc=25℃

Withstand voltage : I/O :1.5KVac ,1min

                                     I/FG:1.5KVac ,1min

                                     O/FG: 0.5KVac,1min

Safety/EMC Standard: UL60950-1, IEC60950-1


Our Services:

Free sample requested is available.

13 years experience of converter industry.

2 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

CE,ROHS,EMC Certificate or Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,Enclosed Power Supply 35-350W


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
