Din Rail Power Supplies EDF-960W Series

960W Din rail mount AC DC Switch Mode Power Supply with Built -in active PFC >0.9, 93.5% typical efficiency,9+1 parallel redunancy, Ce, CB approved

  • Item no.:

    EDF-960W Series
  • Product origin:

    China
  • Color:

    Metal
  • Min order:

    100
  • Product weight:

    2.74KG
  • Shipping port:

    FOBShanghai
  • Lead Time:

    12-14 Weeks
  • Product Details

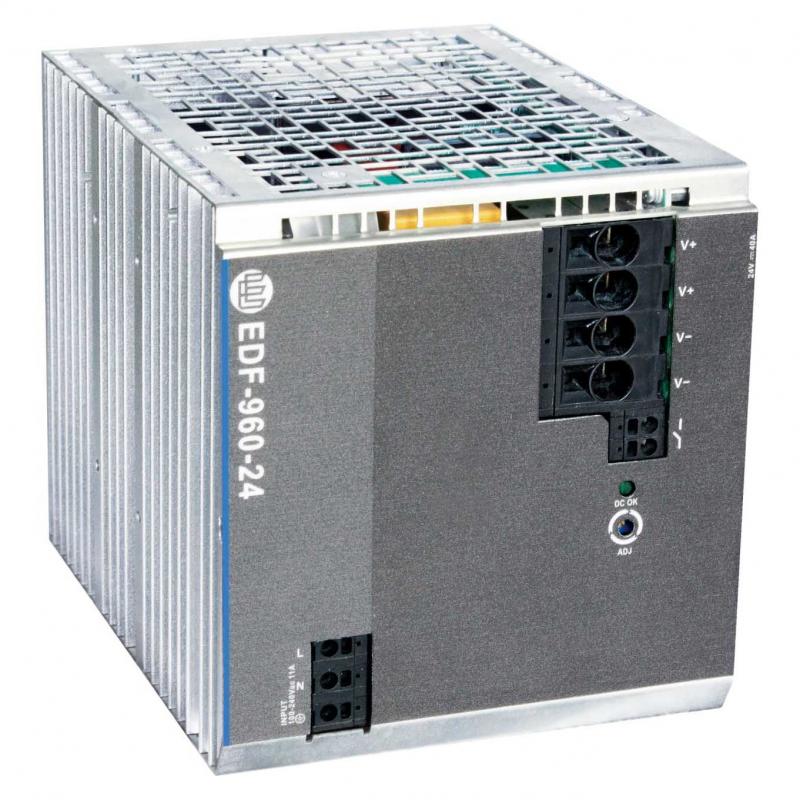

Din Rail Mount Power Supplies  EDF-960W Series


Product Information:

Model: EDF-960W Series

Package: 127x120x155mm

Universal AC Input 85~264Vac,90-370Vdc

LED Power OK , Air Cooling

I/O-isolation 3000Vac

93.5% Efficiency, low loss
9+1 parallel redundancy (Optional)

150% peak load capacity

Built -in active PFC ,Power Factor >0.9

Built -in DC OK replay contact
Operating Temperature: -20~+70℃
Ce ,CB approved EN62368-1

EMC EN55032 Class B

Comply with ROHS 6

Warranty Period: 3-year

Application: Industrial control equipment, smart grid system, and railway transportation


Our Services:

Free sample requested is available.

15 years experience of converter industry.

2 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

Ce ,CB certifications ,ROHS,EMC Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,Din Rail Mount Power Supply 75W-240W


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.


Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
  • Subject : Din Rail Power Supplies EDF-960W Series
