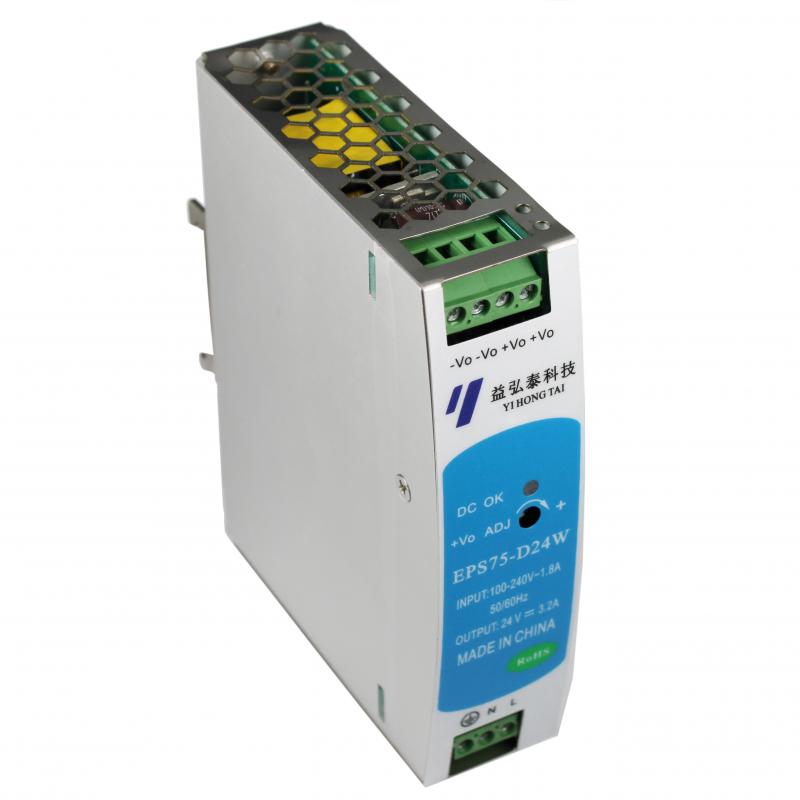

Din Rail Power Supply EP75W-D Series

Ultra slim design-32mm Din rail mount AC DC Converters with active PFC feature, DC_OK contacts, I/O isolation 3000Vac and EMC meets EN55032.

  • Item no.:

    EP75W-D Series
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    Metal
  • Min order:

    50
  • Shipping port:

    FOBBeijing
  • Lead Time:

    8-12 Weeks
  • Product Details

Din Rail Mount Power Supply EP75W-D Series


Product Information:

Model: EP75W-D

Package: 125x102x32mm

Universal Input 85~265Vac
I/O-isolation 3000Vac
Power Factor 0.93typ@230Vac
DC_OK Contact
Operating Temperature: -25~+70℃
EMC Meets requirements of Standard EN55032

Warranty Period: 2-year

Application: Industrial control equipment, smart grid system, and railway transportation


Electrical Specification:

Input characteristic:

Universal AC input range:85~265Vac

Input frequency: 47- 63Hz


Output characteristic:

Load Regulation: ±1% Max

Line Regulation: ±0.5% Max

Ripple and Noise: 100mV Max @Measured by 20MHz

Protection: Overcurrent/Overload/Overvoltage/Short-Circuit


General characteristic:

Efficiency: 88% typical

MTBF: 2×105h @Bellcore TR332,Tc=25℃

Withstand voltage : I/O :3KVac ,1min

                                      I/FG:2KVac ,1min

                                      O/FG: 0.5KVac,1min

Safety Standard: EN60950

EMC Standard: EMS: EN61000-4-2/3/4/5/6/8/11 ,EMI :EN55032 CLASS B


Our Services:

Free sample requested is available.

13 years experience of converter industry.

2 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS,EMC Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,Din Rail Mount Power Supply 75W-240W


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
