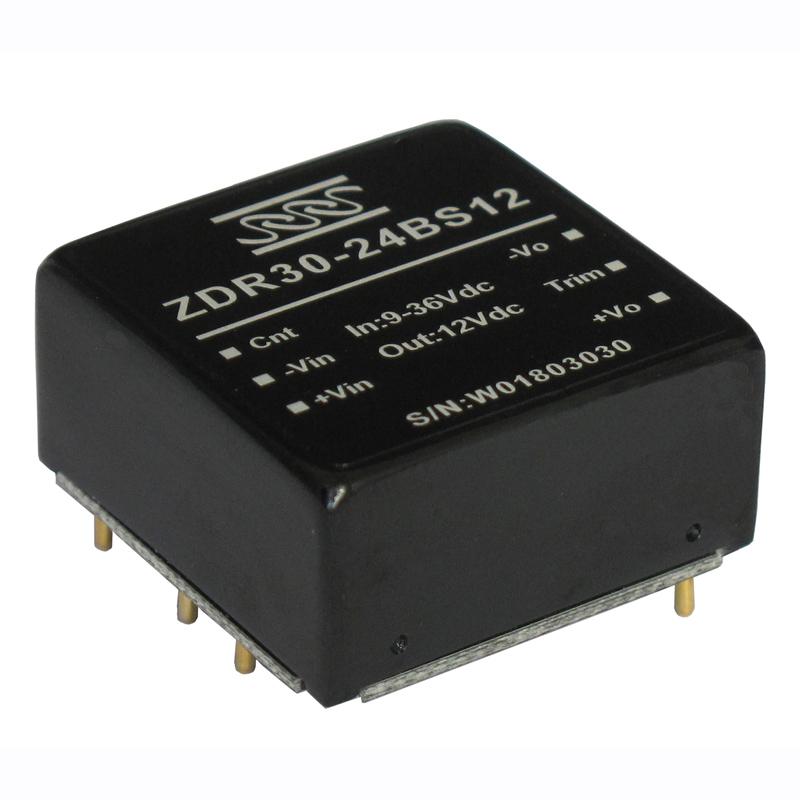

DC/DC Converters ZDR 30W Dual Series

High power density 30W Dual DC/DC Converters, with features of 9-36Vdc wide input and 1x1 inch small size

  • Item no.:

    ZDR 30W Dual Series
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    black
  • Min order:

    50
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-10 Weeks
  • Product Details

DC DC Converter ZDR30W Dual Series


Product Information:

Model: ZDR30W Dual

Small Size:1in.×1in.25.4 mm×25.4 mm×12.7mm

9 to 36Vdc Input Voltage Range

Positive Logic Control3.5V to 15V or floating Turn on

Output Current Protection

Output Short-circuit Protection, automatic recovery

High Efficiency up to 89%24V,full load

1500Vdc I/O Isolation Voltage

Operation Case Temperature -40 to +105

Warranty Period: 5-year

ApplicationsCommunication, Industrial equipments, Instruments, vehicle-mounted equipment and other high-reliability fields, distributed power architecture etc.


Electrical Specification:

Input characteristic:

Input Voltage Range: 9-36Vdc


Output characteristic:

Output Voltage /Current : ±12V/1.25A

Line Regulation:  ±0.2% Max

Load Regulation: ±0.5% Max

Ripple and Noise: 100mV Max @Measured by 20MHz

Temperature Coefficient: ±0.02% per℃(Max)

Short-Circuit Protection: Continuous, Automatic Recovery


General characteristic:

Switching Frequency: 300kHz(typ.)

Efficiency: 89% typical

MTBF: 2×106h @Bellcore TR332,Tc=25℃

Case Temperature:      -40℃ to +105℃(Industry)

Storage Temperature: -55℃ to +125℃


Our Services:

13 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,DC/DC Converter (Industrial electronics)


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.


Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
  • Subject : DC/DC Converters ZDR 30W Dual Series

Related products

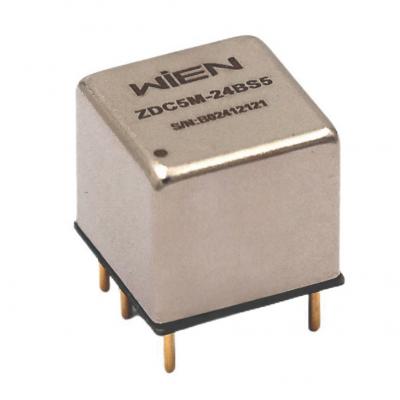

ZDC 5W DC/DC Converter
DC/DC ZDC 5W Series
0.56x0.40 inch Ultra- small size 5W DC/DC Converters with features of wide input and high power density.
YND5W DC/DC Converter
DC-DC Converter YND5W Series
1 in.×1in.Standard Standard Size 5W DC/DC Converter with Operating Case Temp:-25℃ to 95℃
YD5W DC/DC Converter
DC-DC Converter YD5W Series
1.25 in.×0.8in. Small Size 5W DC/DC Converter with Ce certification.

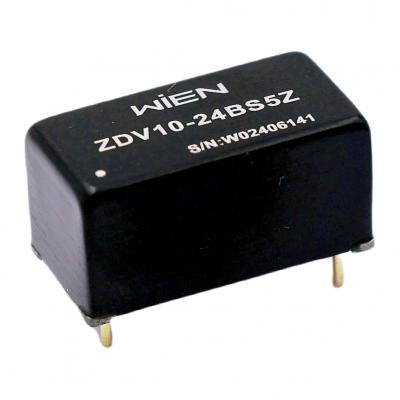

ZDC10W DC-DC Converter
