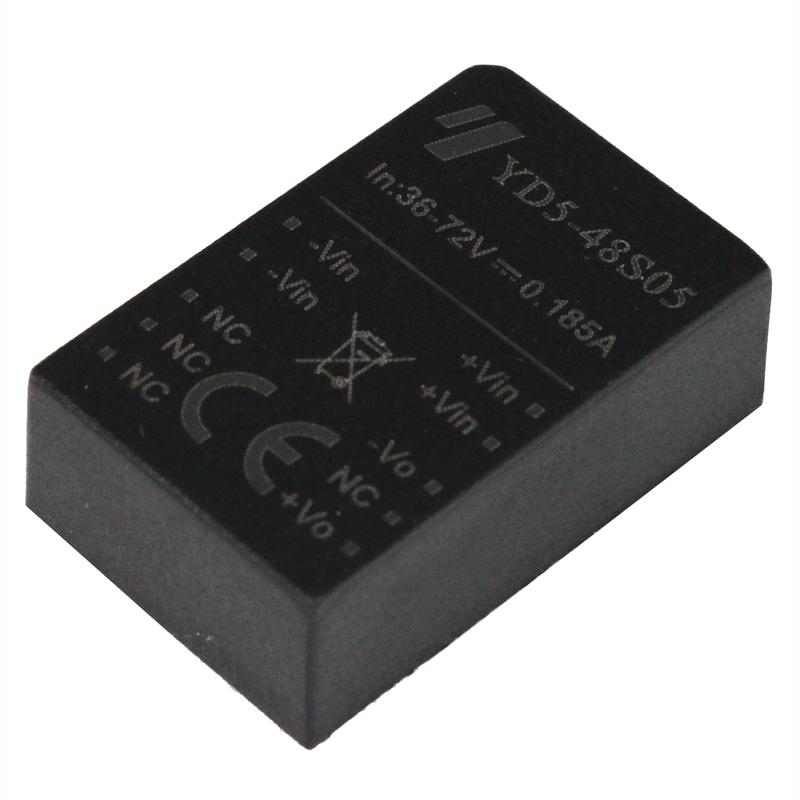

DC-DC Converter YD5W Series

1.25 in.×0.8in. Small Size 5W DC/DC Converter with Ce certification.

  • Item no.:

    YD5W Series
  • Payment:

    tt in advance
  • Product origin:

  • Color:

  • Min order:

  • Product weight:

  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-10 Weeks
  • Product Details

DC-DC Converter YD5 Series

The YD5W series DC-DC Converters are widely used in telecommunications, industry, and power electricity industries. Have obtained CE certificate, quality is guaranteed, welcome to buy!

Product Information:

Model: YD5W

Industrial Standard Size:  31.8mm×20.3mm×10.5mm

Isolation Voltage: 500Vdc 1min/5mA (Input-Output)

Operating Case Temp: -25℃to 95℃

Warranty Period: 5-year

Electrical Specification:

Input characteristic:

Input Voltage Range: 9-18V,18-36V,36-72Vdc

Output characteristic:

Output Voltage/Current : see tables - technical datasheets

Line Regulation:  ±0.2% max. Vo

Load Regulation: ±0.5% max. Vo

Ripple and Noise:

50mVp-p      Vo5Vdc,

100 mVp-p   Other

200 mVp-p   Vo48Vdc

Temperature Coefficient: ±0.02%/℃

Short-Circuit Protection: Continuous, Automatic Recovery

General characteristic:

Switching Frequency: 300KHz

Efficiency: 73%- 80% @Input Voltage:48Vdc,Iomax

MTBF: 2×106h @Bellcore TR332,Tc=25℃

Case Temperature: -25℃ to 85℃

Storage Temperature: -55℃ to 105℃

Our Services:

Free sample requested is available.

13 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

CE,ROHS Certificate or Compliance


Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,Isolated DC Converter

Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.

Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.

Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
