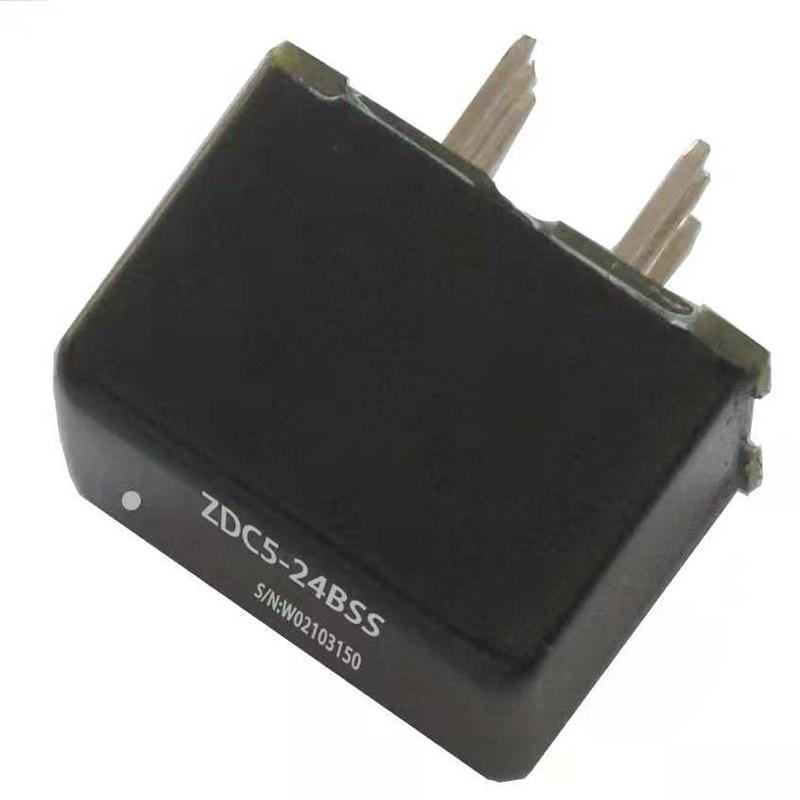

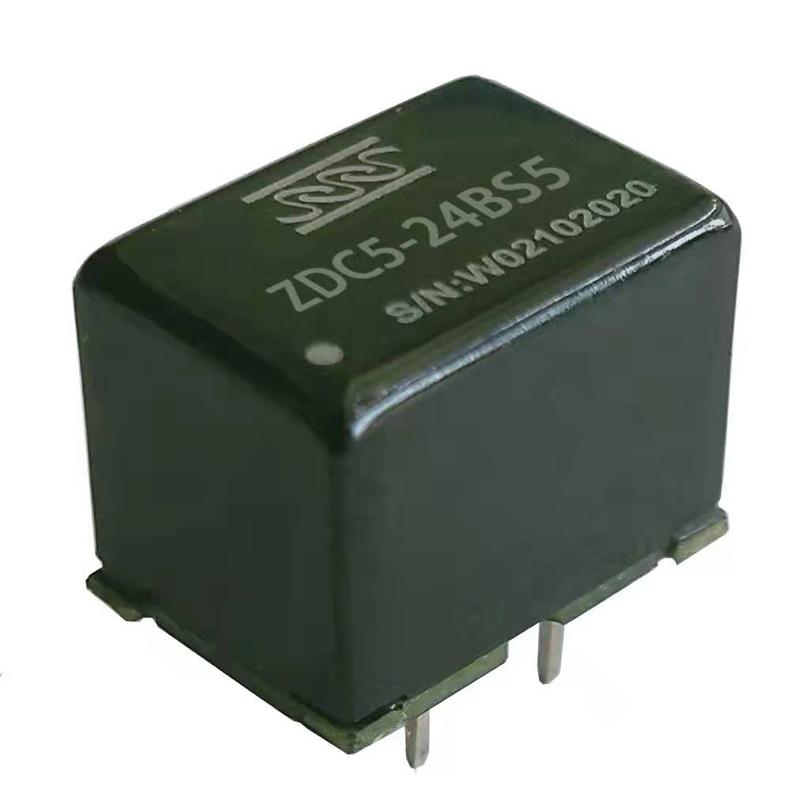

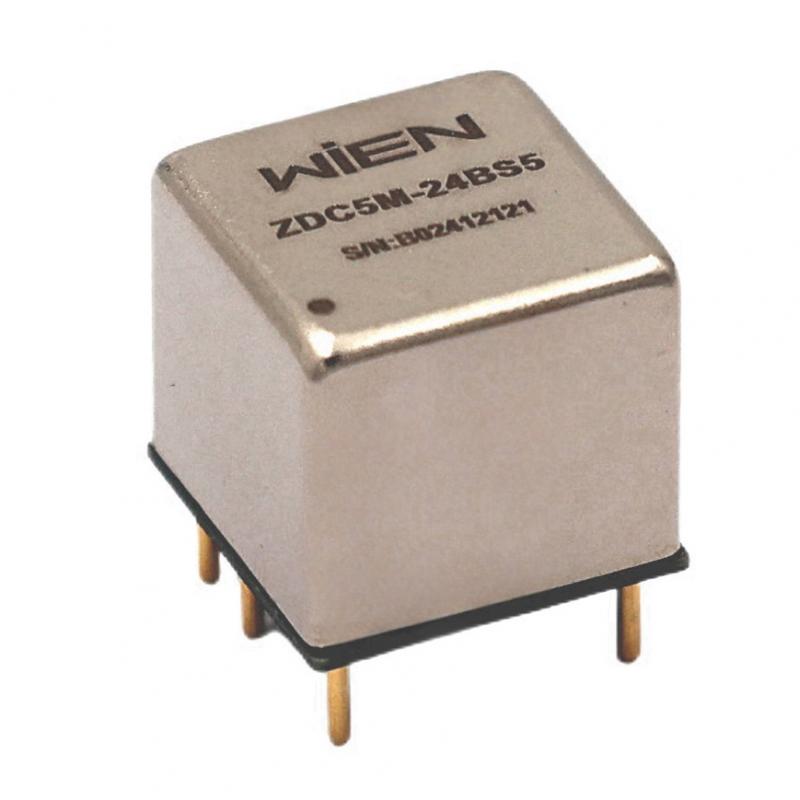

DC DC Converter ZDC 5W Series
The ZDC 5W series DC-DC Converters are widely used in Telecommunication equipments data exchange servers and distributed power.
Product Information:
Model: ZDC 5W
Ultra- small size: 14.2mm×10.1mm×10.2mm
Isolation Voltage: 1500Vdc/1min/5mA (Input-Output)
Operating Case Temp: -40℃ to +105℃(Industry)
Warranty Period: 5-year
Electrical Specification:
Input characteristic:
Input Voltage Range: 9-36Vdc
Output characteristic:
Output Voltage /Current: See tables - technical datasheet
Line Regulation: ±0.2% Max
Load Regulation: ±0.5% Max
Ripple and Noise: 50mV-200mV Max @Measured by 20MHz
Temperature Coefficient: ±0.02% per℃(Max)
Short-Circuit Protection: Continuous, Automatic Recovery
General characteristic:
Switching Frequency: 300kHz(typ.)
Efficiency: 84% typical
MTBF: 2×106h @Bellcore TR332,Tc=25℃
Case Temperature: -40℃ to +105℃(Industry)
Storage Temperature: -55℃ to +125℃
Our Services:
Free sample requested is available.
15 years experience of converter industry.
5 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
ROHS Compliance
FAQ:
Q: what can you buy from us?
A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,Isolated dc to dc converter
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Is it acceptable to print my logo on the product?
A: Yes. based on a certain purchase quantity,we can make OEM logo.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 or 5-year warranty for our products.
Q: What if I cannot find what I need on your products list?
A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
