DC/DC Converters ZDK 60W Series

9-36Vdc wide input 60W DC/DC Converters, with features of 2x1 inch compact size and compliance with EN50155 railway standard

  • Item no.:

    ZDK 60W Series
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    black
  • Min order:

    50
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-12 Weeks
  • Product Details

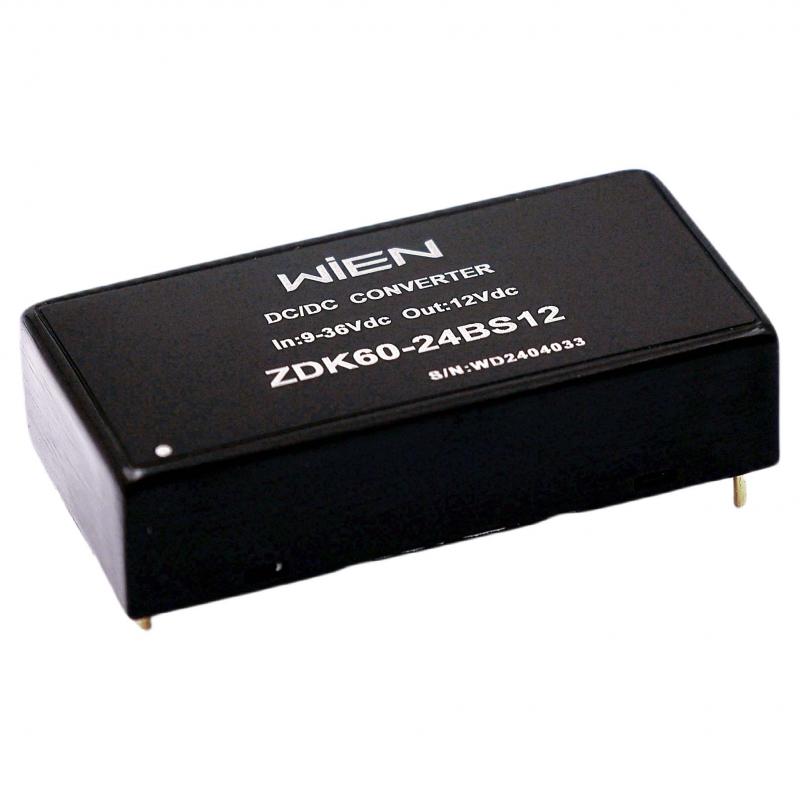

DC/DC Converters  ZDK 60W Series


The ZDK60W Series DC-DC Converters are widely used in Telecom/ datacom system equipments, bus ,metro, tram and Railway & Rail transit ,Industrial control equipments and Instrument.


Product Information:

Model: ZDK60W

2 in.×1in. Compact Size (50.8mm*25.4mm*12.7mm)

4:1 Wide input voltage

1500Vdc  Isolation Voltage

Operating Case Temp:-40 to +105

Output Short-circuit Protection,hiccup, auto-recovery

Applications:Telecom / datacom system equipments, bus ,metro, tram and Railway & Rail transit ,Industrial control equipments and Instrument

Compliance with EN50155 railway standard

5-year. warranty


Electrical Specification:

Input characteristic:

Input Voltage Range: 9-36Vdc


Output characteristic:

Output Voltage / Current : See tables - technical datasheet

Line Regulation:  ±0.2% Max

Load Regulation: ±0.5% Max

Ripple and Noise: 100mV @Measured by 20MHz

Temperature Coefficient: ±0.02% per℃(Max)

Short-Circuit Protection: Continuous, Automatic Recovery


General characteristic:

Switching Frequency: 300kHz(typ.)

Efficiency: 91% typical

MTBF: 2×106h @Bellcore TR332,Tc=25℃

Case Temperature:      -40℃ to +105℃

Storage Temperature: -55℃ to +125℃
