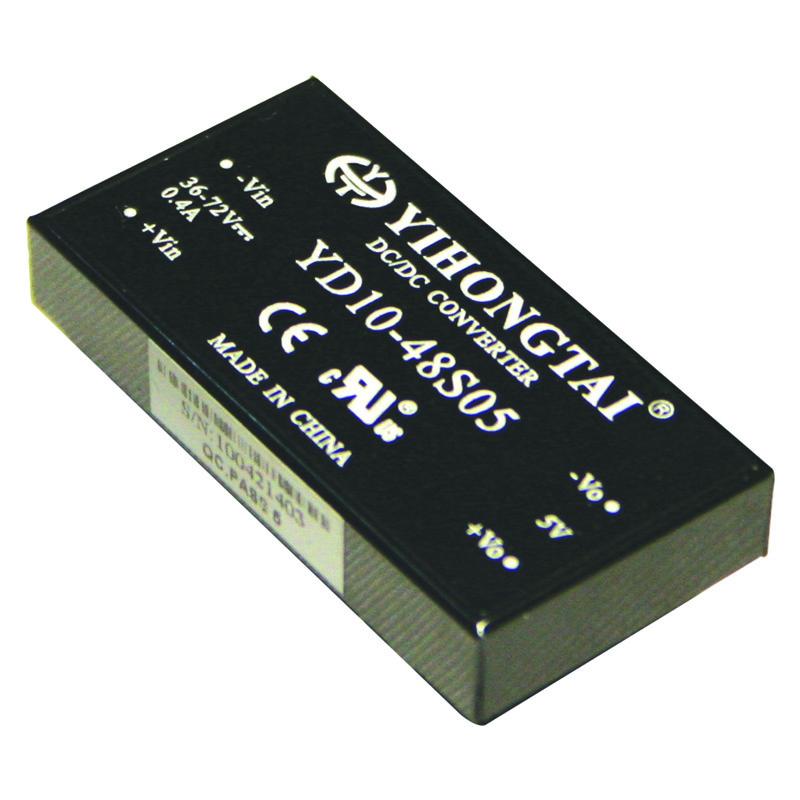

DC-DC Converter YD10W Series
The YD10W series DC/DC Converters are widely used in telecommunications, industry, and power electricity industries. Have obtained CE certificates.
Product Information:
Model: YD10W
Industrial Standard Size: 50.8x25.4x10.2mm
Isolation Voltage: 500V -2000Vdc (Input-Output)
Operating Case Temp: -25℃to 95℃
Warranty Period: 5-year
Electrical Specification:
Input characteristic:
Input Voltage Range: 9-18V,18-36V,36-72Vdc,66-160Vdc
Output characteristic:
Output Voltage/Current : see tables - technical datasheet
Line Regulation: ±0.2% max. Vo1
Load Regulation: ±0.5% max. Vo1
Ripple and Noise: 50mV -200mV @ Measured by 20MHz
Temperature Coefficient: ±0.02%/℃Short-Circuit Protection: Continuous, Automatic Recovery
General characteristic:
Switching Frequency: 300KHz
Efficiency: 75%- 84%
MTBF: 2×106h @Bellcore TR332,Tc=25℃
Case Temperature: -25℃ to 95℃
Storage Temperature: -55℃ to 125℃
Our Services:
Free sample requested is available.
13 years experience of converter industry.
5 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
Ul,CE,ROHS Certificates or Compliance
FAQ:
Q: what can you buy from us?
A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,isolated dc dc converter
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Is it acceptable to print my logo on the product?
A: Yes. based on a certain purchase quantity,we can make OEM logo.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 or 5-year warranty for our products.
Q: What if I cannot find what I need on your products list?
A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
