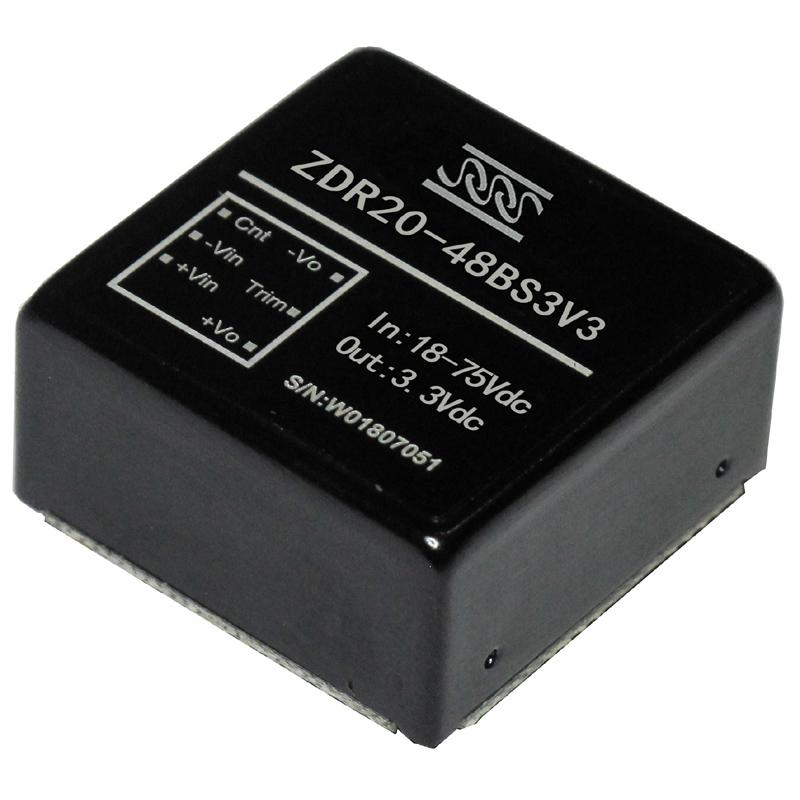

DC/DC Converter ZDR 20W Series

1:4 Wide input 20W DC-DC Converters with features of 1in.×1in. Compact Size and High Efficiency up to 89%.

  • Item no.:

    ZDR20-48BS3V3T
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    black
  • Min order:

    50
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-10 Weeks
  • Product Details

DC DC Converter ZDR 20W Series


The ZDR 20W series DC-DC Converters are widely used in Instruments, vehicle-mounted equipment and other high-reliability fields, distributed power architecture etc.



Product Information:

Model: ZDR 20W

1in.×1in. Compact Size25.4 mm×25.4 mm×10.5mm

18 to 75Vdc,9 to 36Vdc Wide Input Voltage Range

Positive Logic Control3.5V to 15V or floating Turn on

Output Short-circuit Protection, automatic recovery

High Efficiency up to 89%48V, full load

2250Vdc Min. Isolation Voltage

Operation Case Temperature -40 to +105

Surface mount (SMT) or Through hole (TH)

Warranty Period: 5-year


Electrical Specification:

Input characteristic:

Input Voltage Range: 18-75Vdc


Output characteristic:

Output Voltage / Current : 3.3Vdc / 6A

Line Regulation:  ±0.2% Max

Load Regulation: ±0.5% Max

Ripple and Noise: 75mV Max @Measured by 20MHz

Temperature Coefficient:  ±0.02% per℃(Max)

Short-Circuit Protection: Continuous, Automatic Recovery


General characteristic:

Switching Frequency: 300kHz(typ.)

Efficiency: 88% typical

MTBF: 2×106h @Bellcore TR332,Tc=25℃

Case Temperature:      -40℃ to +105℃

Storage Temperature: -55℃ to +125℃


Our Services:

13 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,Isolated dc dc converter module


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
