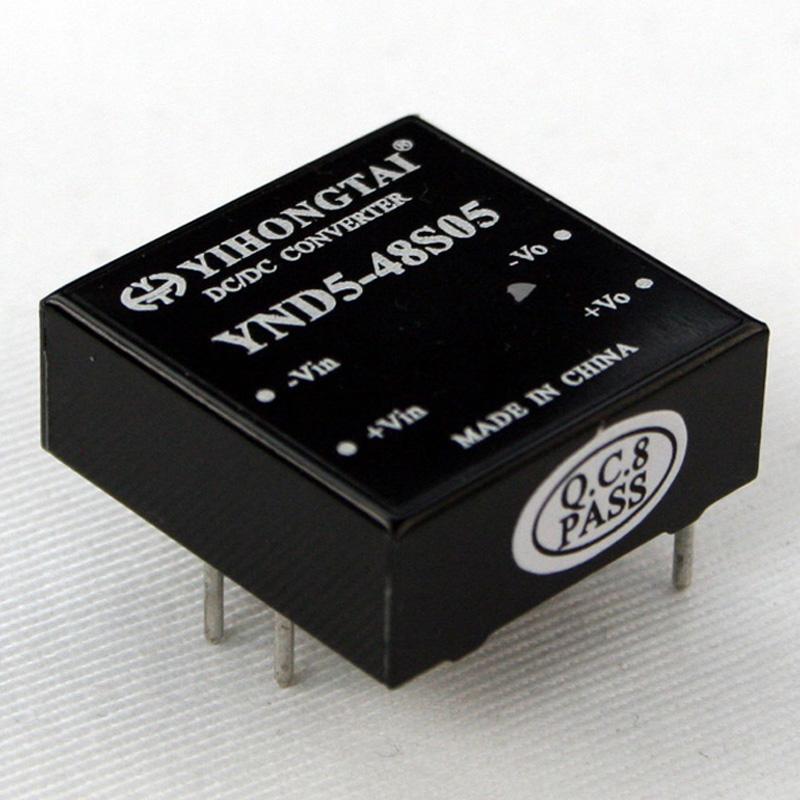

DC-DC Converter YND5W Series

1 in.×1in.Standard Standard Size 5W DC/DC Converter with Operating Case Temp:-25 to 95

  • Item no.:

    YND5W Series
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    black
  • Min order:

    100
  • Product weight:

    12G
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-10 Weeks
  • Product Details

DC-DC Converter YND5 Series


The YND5W series DC-DC Converters are widely used in telecommunications, industry, and power electricity industries.


Product Information:

Model: YND5W

Industrial Standard Size: 25.4mm×25.4mm×10.2mm

Isolation Voltage: 500Vdc @Input-Output 1 min,Leak Current 1mA

Operating Case Temp: -25℃to 95℃

Warranty Period: 5-year


Electrical Specification:

Input characteristic:

Input Voltage Range: 9-18V,18-36V,36-72Vdc


Output characteristic:

Output Voltage/Current : see tables - technical datasheets

Line Regulation:  ±0.2% max. Vo

Load Regulation: ±0.5% max. Vo

Ripple and Noise:

50mVp-p      Vo5Vdc,

100 mVp-p   Other

200 mVp-p   Vo48Vdc

Temperature Coefficient: ±0.02%/℃

Short-Circuit Protection: Continuous, Automatic Recovery


General characteristic:

Switching Frequency: 330KHz

Efficiency: 74%- 80% @ Input Voltage:48Vdc,Iomax

MTBF: 2×106h @Bellcore TR332,Tc=25℃

Case Temperature: -25℃ to 95℃

Storage Temperature: -55℃ to 125℃


Our Services:

Free sample requested is available.

13 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,Isolated DC/DC Converter


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
