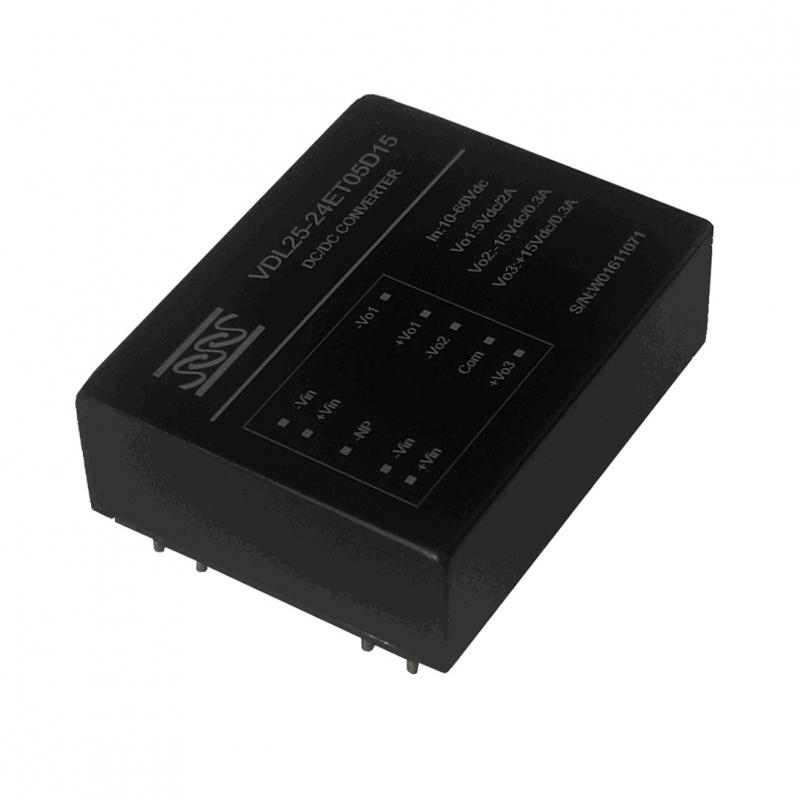

DC/DC Converters VDL25-24ET05D15

Ultra wide input 10-60V,25W DC/ DC Converter with triple output and industrial standard size 2x1.6 inch.

  • Item no.:

    VDL25-24ET05D15
  • Payment:

    tt in advance
  • Product origin:

    China
  • Color:

    black
  • Min order:

    50
  • Product weight:

    40G
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-12 Weeks
  • Product Details

DC DC Converter VDL25-24ET05D15


The VDL25-24ET05D15 DC-DC Converters are widely used in Vehicle power and control ,Industrial Electronics ,Communication equipments ,data exchange servers and distributed power etc.


Product Information:

Model: VDL25-24ET05D15

Industry Standard size :2×1.6 inch (50.8x40.6x12.7mm)

Wide input voltage range10V to 60V

Input Under Voltage Protection7.0V to 10.0V Turn off

Output Over Current Protection

Output Short-circuit Protection(Hiccup mode, automatic recovery)

High Efficiency, typical 86%24V, full load

1500Vdc I/O Isolation Voltage

Case Temperature -40 to100

Warranty Period: 5-year


Electrical Specification:

Input characteristic:

Input Voltage Range: 10-60Vdc


Output characteristic:

Output Voltage /Current : 5V/2A, ±15V/±0.3A

Line Regulation:  ±0.2% Max

Load Regulation: ±0.5% Max

Ripple and Noise: 120mV Max @Measured by 20MHz

Temperature Coefficient: ±0.02% per℃(Max)

Output Over Current Protection

Output Short-circuit Protection(Hiccup mode, automatic recovery)


General characteristic:

Switching Frequency: 300kHz(typ.)

Efficiency: 86% typical

MTBF: 2×106h @Bellcore TR332,Tc=25℃

Case Temperature:      -40℃ to +100℃

Storage Temperature: -55℃ to +125℃


Our Services:

13 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Compliance
