DC/DC Converter ZDB6W Series

Wide Input 9V-36V SIP package 6W DC DC Converters, with features of nickel-plated copper shell and small size 21.8×11.2×9.5mm


  • Item no.:

    ZDB6-24BS5
  • Payment:

    tt in advance
  • Product origin:

    China
  • Min order:

    100
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-10 Weeks
  • Product Details

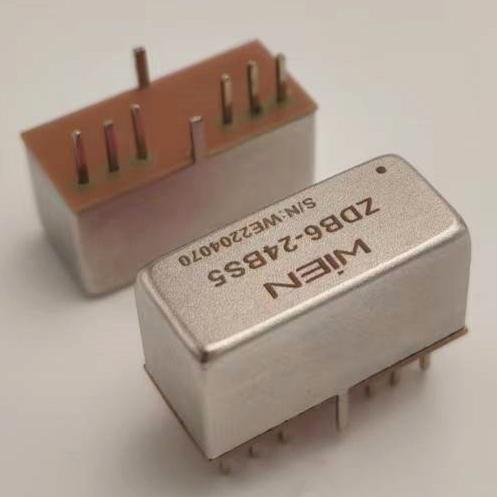

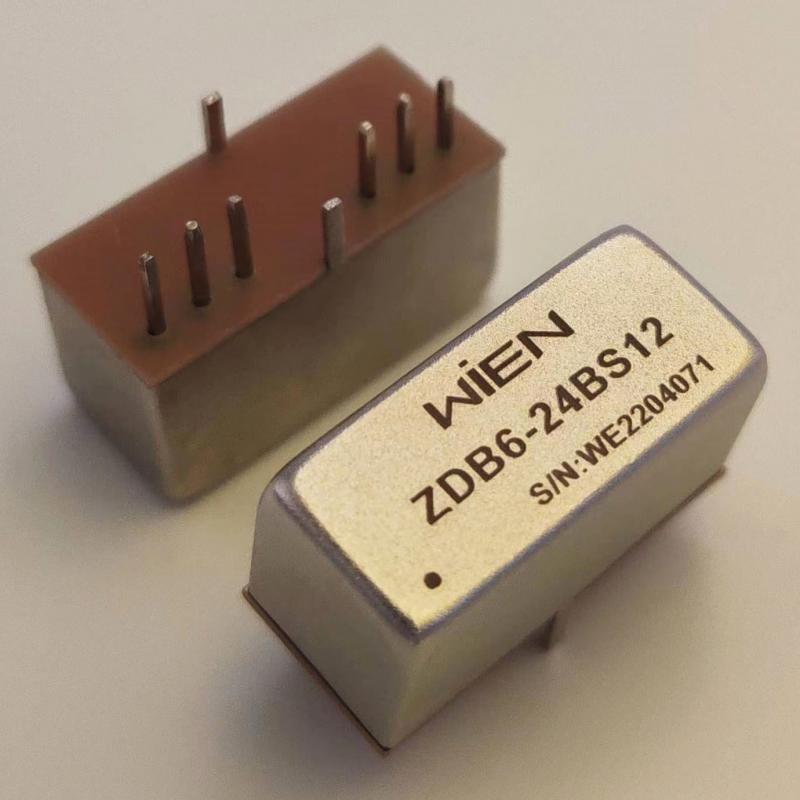

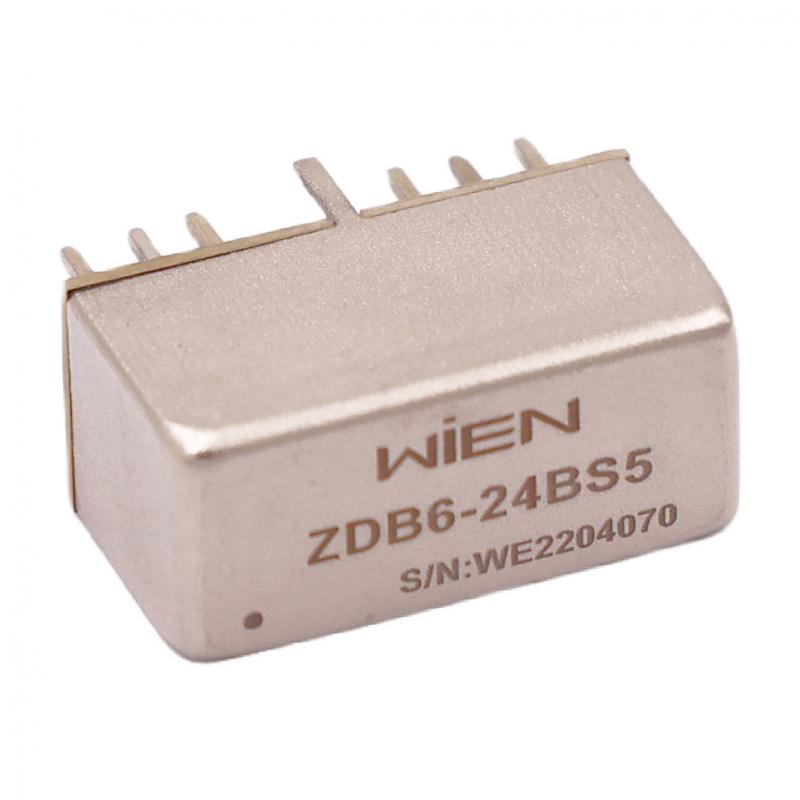

DC-DC Converter ZDB6W Series


The ZDB6W Series DC-DC Converters are widely used in Communication, Industrial equipments, Instruments, vehicle-mounted equipment and other high-reliability fields, distributed power architecture, etc.


Product Information:

Small size: 21.8mm×11.2mm×9.5mm

9 to 36Vdc Input Voltage Range

Positive Logic Control1.5V to 36V or floating Turn on

Output Over Current Protection

Output Short-circuit Protection, automatic recovery

High Efficiency up to 83%24V,full load

500Vdc I/O Isolation Voltage

Operation Case Temperature -40 to +95

Warranty Period: 5-year


Electrical Specification:

Input characteristic:

Input Voltage Range: 9-36Vdc


Output characteristic:

Output Voltage /Current: 5Vdc/1.2A

Line Regulation:  ±0.2% Max

Load Regulation: ±0.5% Max

Ripple and Noise: 50mV Max @Measured by 20MHz

Temperature Coefficient: ±0.02% per℃(Max)

Short-Circuit Protection: Continuous, Automatic Recovery


General characteristic:

Switching Frequency: 600kHz(typ.)

Efficiency: 83.5% typical

MTBF: 2×106h @Bellcore TR332,Tc=25℃

Case Temperature:      -40℃ to +95℃

Storage Temperature: -55℃ to +125℃


Our Services:

Free sample requested is available.

15 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,Isolated DC DC converter


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
