Digital Non-isolated DC-DC Converter ZBU12-12BS
This Non-isolated DC/DC Converters are widely used in Telecommunication
equipments, data exchange servers ,distributed power architectures and Vehicle-mounted system,Industrial control,Electric power,battery powered equipment,etc.
Product Information:

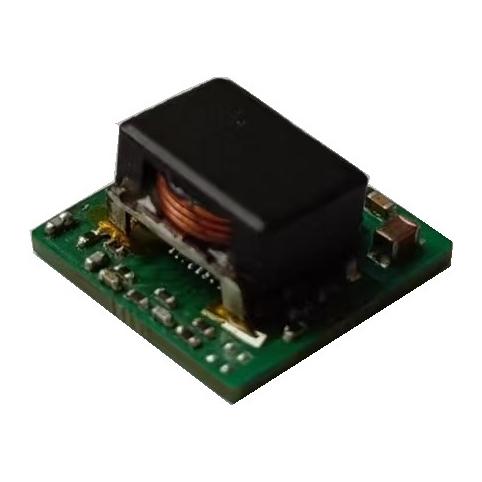

Model: ZBU12-12BS
Input 3V～14.4V output 0.45V～5.5V/12A Digital Power
Size :15mm×15mm×8.5mm
Digital interface through the PMBusTM# protocol
Output voltage programmable from 0.6Vdc to 5.5Vdc via external resistor. Digitally adjustable down to 0.45Vdc
Flexible output voltage sequencing EZ-SEQUENCE\Power Good signal\Fixed switching frequency with capability of external synchronization
High efficiency: typical 94% (12V input,5V output)
Remote enable control（low level or float on）
Input undervoltage protection\Output overcurrent protection (non-latching)\Overtemperature protection
-40℃～+85℃ ambient temperature
Our Services:
Free sample requested is available.
18 years experience of converter industry.
5 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
ROHS Compliance
FAQ:
Q: what can you buy from us?
A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,Non-isolated dc-dc converters
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Is it acceptable to print my logo on the product?
A: Yes. based on a certain purchase quantity,we can make OEM logo.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 or 5-year warranty for our products.
Q: What if I cannot find what I need on your products list?
A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
