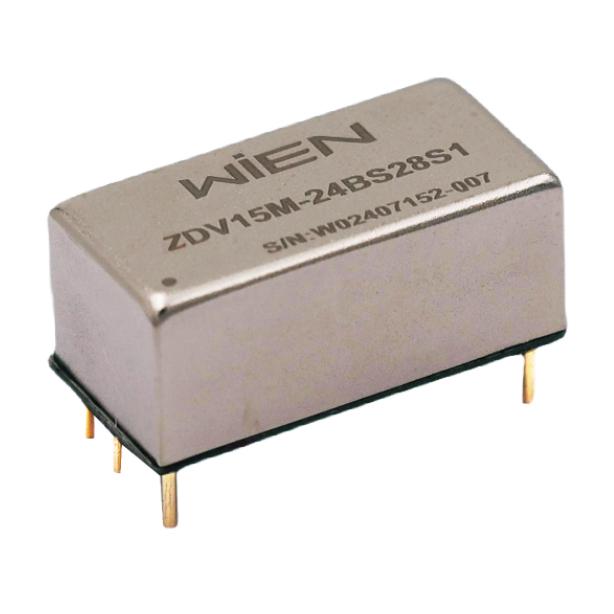

DC DC Converter ZDV 15W Series
Product Information:
Model: ZDV15W Series
Ultra- small size: 25.4mm×12.7mm×10.8mm
Small DIP package
Shell temperature range: -40℃ to +105℃
Isolation voltage: 500-1500Vdc
High efficiency can reach up to 86%.
Output short-circuit protection, self-recovery
Low ripple noise
Warranty Period: 5-year
Widely used in Telecom/Datacom, industry and power electricity industries.
Electrical Specification:
Input characteristic:
Input Voltage Range: 9-36Vdc
Output characteristic:
Output Voltage /Current : See tables - technical datasheet
Line Regulation: ±0.2% Max
Load Regulation: ±0.5% Max
Ripple and Noise: 50mV-200mV Max @Measured by 20MHz
Temperature Coefficient: ±0.02% per℃(Max)
Short-Circuit Protection: Continuous, Automatic Recovery
General characteristic:
High efficiency can reach up to 86%.
MTBF: 2×106h @Bellcore TR332,Tc=25℃
Case Temperature: -40℃ to +105℃(Industry)
Storage Temperature: -55℃ to +125℃
Our Services:
Free sample requested is available.
18 years experience of converter industry.
5 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
ROHS Compliance
