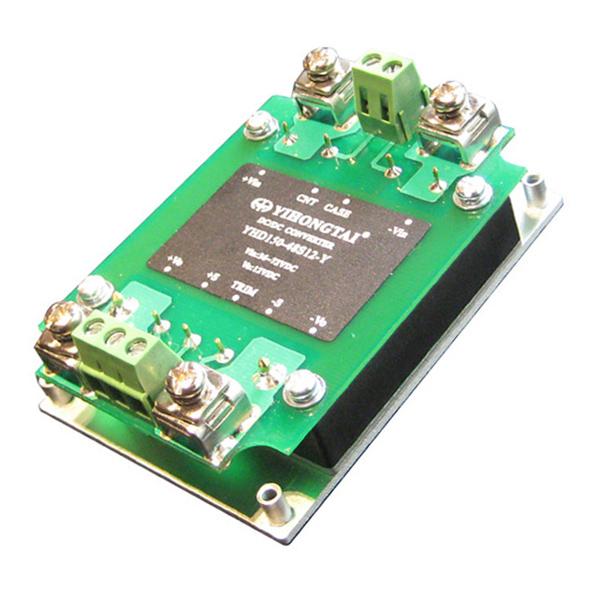

DC-DC Converter RAHS50-200W-Y Series Chassis mount package
Product Information:
Model: RAHS50-200W-Y
Half-brick with Terminals and Al baseplate (85.0mm×61.0mm×29.7mm)
Positive Logic Control（3.5V to 15V turn on）
Input Under Voltage Protection
Output Over Voltage Protection
Output Voltage Adjust Range:±10 % of the rated output voltage
Output Short-circuit Protection, hiccup, auto-recovery
High efficiency up to 90%(110V,full load)
1500Vac Min I/O Isolation Voltage
Operating Ambient Temperature：-40℃ to +85℃
Over Temperature Protection: 110℃ Typ.
Meets requirements of Standard EN50155
Warranty Period: 5-year
Application: Industrial electronics & control and Rail transit & railway application
Electrical Specification:
Input characteristic:
Input Voltage Range: 9(18)-36Vdc, 18(36)-75Vdc, 43(66)-160Vdc
Output characteristic:
Output voltage / Current : see tables - technical data sheet
Line Regulation: ±0.2% max.
Load Regulation: ±0.5% max.
Ripple and Noise: 100mV-200mV Max
Temperature Coefficient: ±0.02%/℃
General characteristic:
Switching Frequency: 250KHz(typ.)
Efficiency: 90% typical.
MTBF: 2×106h @Bellcore TR332,Tc=25℃
Operating Baseplate Temperature: -40℃ to +100℃
Storage Temperature: -55℃ to +105℃
Our Services:
15 years experience of converter industry.
5 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
ROHS Certificate or Compliance
