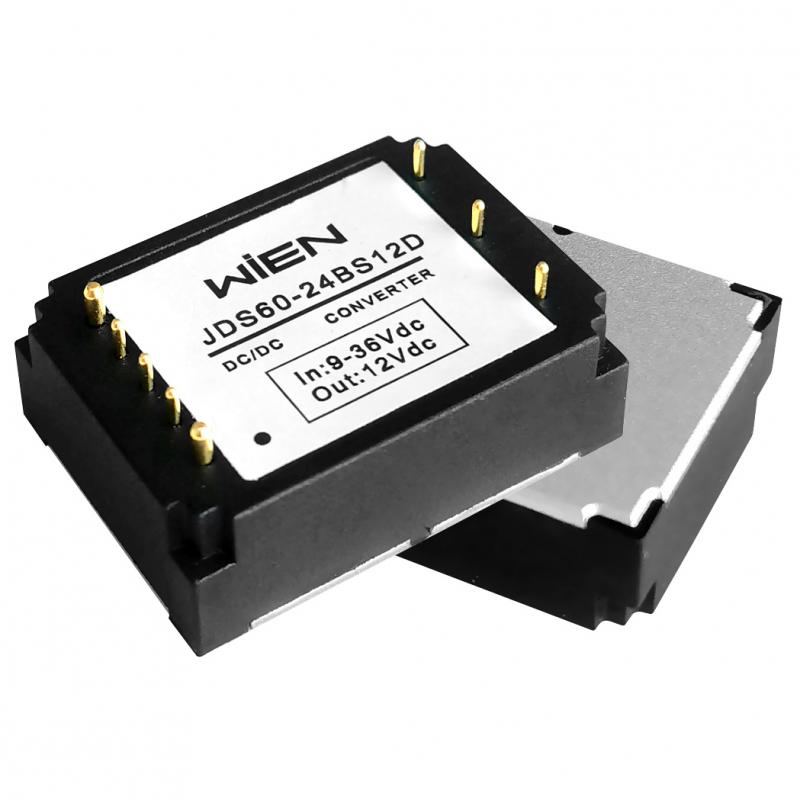

DC/DC Converters ZDS60-24BS12

Designed for wide input 9-36V,12V/5A output, with features of Sixteen brick Footprint and High Efficiency up to 91.5%.

  • Item no.:

    ZDS60-24BS12
  • Product origin:

    China
  • Color:

    Black
  • Min order:

    50
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-12 Weeks
  • Product Details

DC-DC Converter ZDS60-24BS12


Product Information:

Model: ZDS60-24BS12

1/16 Brick36.6m×26.6×12.7mm with case

                     33.02×22.86×10.2mm no case

Input Under Voltage Protection7.2 to 8.9Vdc Turn off

Positive Logic Control3.5V to 15V or floating Turn on

Output Voltage Adjust Range: ±10% of the rated output voltage

Output Over Voltage Protection ,Output Over Current Protection

Output Short-circuit Protection, automatic recovery

High Efficiency up to 91.5%24V,full load

1500Vdc Min. Isolation Voltage

110 Typ. Over Temperature Protection

Operation Ambient Temperature :  -40 to +85

Operation Baseplate Temperature :-40 to +100

Warranty Period: 5-year

ApplicationsTelecom& Datacom ,Industry, Rail transit and Railway etc.


Electrical Specification:

Input characteristic:

Input Voltage Range:  9-36Vdc


Output characteristic:

Output Voltage/Current : 12V/5A

Line Regulation:   ±0.2% V0

Load Regulation:  ±0.3% V0

Ripple and Noise:  100mV Max.

Temperature Coefficient: ±0.02%/℃


General characteristic:

Switching Frequency: 300KHz(typ.)

High Efficiency up to 91.5%

MTBF: 2×106h @Bellcore TR332,Tc=25℃

Operating Ambient Temperature: -40℃ to +85℃

Storage Temperature:                        -55℃ to +125℃


Our Services:

13 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

ROHS Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,Isolated DC/DC Converter


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
